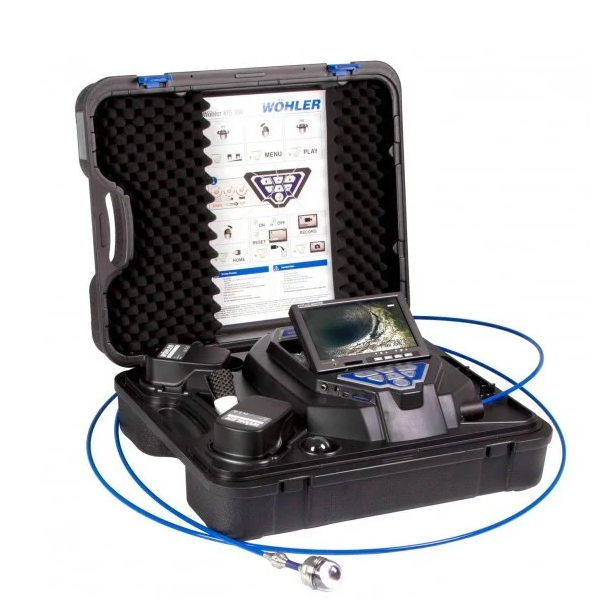

Wöhler VIS 350 PLUS Inspection Camera (2 camera, 30m)

Monitor

Dimensions housing: 176 x 114 x 32 mm

TFT-display 7" / 16:9 format

Video out: RCA signal

Weight: 400 g

Power supply: Space for 2 rechargeable batteries, each 12 V or via power pack

Battery operating time: Max. 2 rechargeable batteries, each 120 mins. = 4 h (battery status in display)

Wöhler pan- and tiltable camera head Ø 40, detachable

Type: 1/3" COLOR CMOS

Pixels: 768 x 576 (PAL)

656 x 492 (NTSC)

Light sensitivity: 0,5 Lux

Lens: f = 2,3 mm, F = 2,5

Viewing angle: 130°

Light source: 12 white LEDs

Degree of protection: Waterproof to IP 67

Dimensions: Ø 40 x 60 mm

Operation temperature: 0...40 °C, RH 95 % MAX

Storage temperature: -20...50 °C, RH 95 % MAX

Transmitter frequency: 9,2 kHz

Wöhler miniature camera head Ø 26, detachable

Type: 1/3" COLOR CMOS

Resolution: 420 lines

Pixels:

768 x 576 (PAL)

656 x 492 (NTSC)

Light sensitivity: 0,5 Lux

Lens: f = 2,3 mm, F = 2,5

Viewing angle: 145°

Light source: 12 white LEDs

Degree of protection: Waterproof to IP 68

Dimensions: Ø 26 x 38 mm

Weight: 240 g

Operation temperature: 0...40 °C, RH 95 % MAX

Storage temperature: -20...50 °C, RH 95 % MAX

Transmitter frequency: 9,2 kHz

Push rod Length: 20 m

Diameter: 6,5 mm

Plastic case: Dimensions 51 x 43 x 17 cm

Weight: 8,2 kg

Distance measurement: Electronic meter counter
