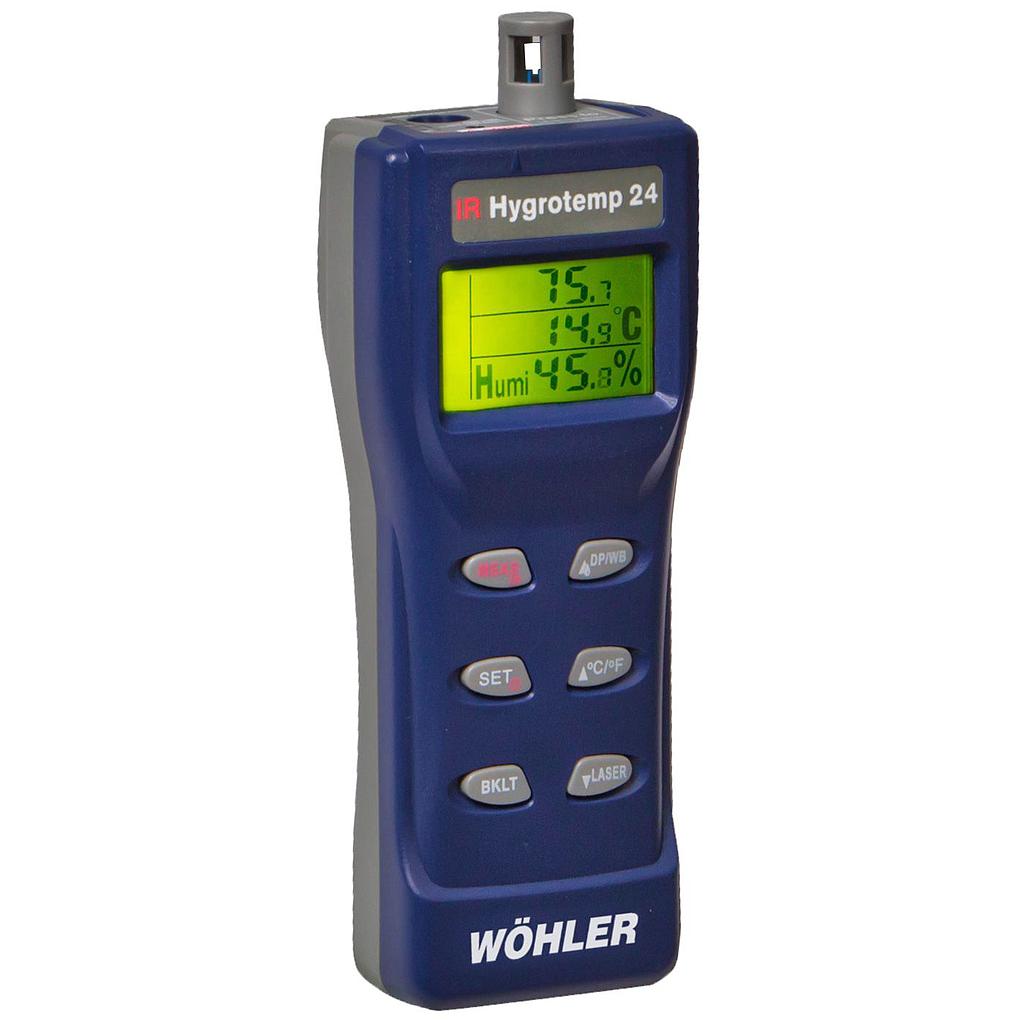

Wöhler IR HYGROTEMP 24 Atmospheric measurement

Technical data

Temperature range: -20~50 °C

Accuracy: ±0,6 °C f.m.

Resolution: 0,1 °C

Infrared Temperature range: -40~500 °C

Accuracy: ±2 % or ±2 °C (-20~450 °C), rest ±3 % or ±3 °C f.m.

Resolution: 0,1 °C

Response tim: 500 msec.

Ratio: 8:1

Humidity range: 0~100 % (not condensing), ±3 % at 10~90 %, rest ±5 %

Resolution: 0,1 %

Wet bulb temperature: -21,6~49,9 °C

Emission factor: 0,30~0,99 adjustable

Display: 3 line LCD

Current supply: 4 x 1.5 V micro battery

Size: 170 x 50 x 70 mm

Weight: 170 g (without case)
