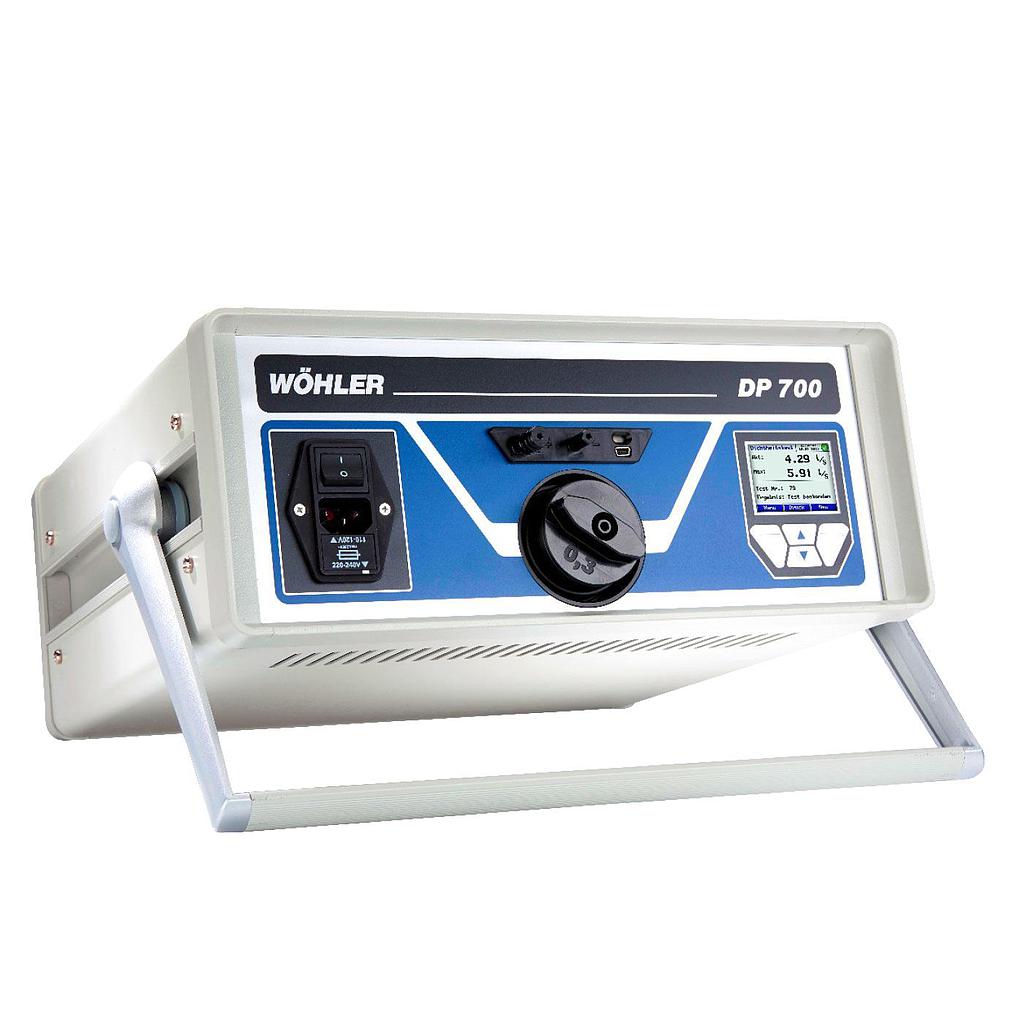

Wöhler DP 700 Leakage Tester (± 7.000 Pa; 0,0000 ~ 55,00 l / s)

Technical data

- Pressure:

Principle: piezoresistive semiconductor sensor

Measurement range: ±7.000 Pa

Resolution: 0,1~±900 Pa, thereafter 1 Pa

Accuracy: ±0,5 Pa or ±2,5 % of reading

- Volume flow (based on 1,013 hPa and 20 °C):

Principle: Hot film anemometer

Range: 0,0000~55,00 l/s

Resolution 0,0001~0,3000 l/s; 0,001~3,000 l/s; 0,01~3,00 l/s

Accuracy: ±0,0009 l/s or 5 % of reading

- General technical data:

Power Supply: 110~230 V, 50~60 Hz

Power consumption: max. 9 A

Operating temperature range: 5~40 °C

Storage temperature range: -20~50 °C

Weight: 9,5 kg

Scope of delivery

- Wöhler DP 700 Leakage Tester

- Air hose 3.75 m

- Air hose 4 m

- Pressure hose 10 m

- Calibration report

- Power cable 2.5 m

- Adapter 0.3, 2 brass nipples

- Hose connection for negative pressure

- Filter pad

- Silicone grease

- 2 transport cases
