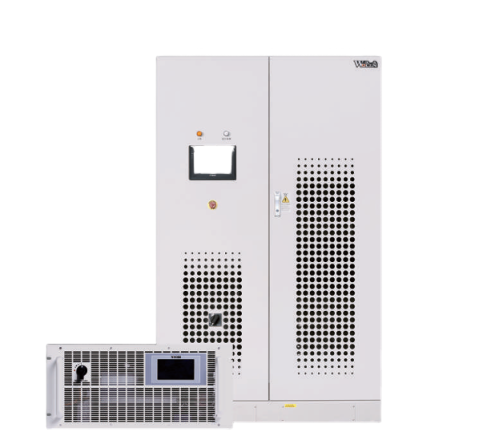

WOCEN EVWP-120-800 DC Regulated Power Supply (800V, 200A, 120kW)

Rate Power: 120kW

Peak Power: 120kW(60S)

Rate Voltage: 600V

Voltage range: 24-800V

Rated Current: 200A

Peak Current: 300A

Relief Device: 8kW (Buily-in)

AC features

Phase number: 3-phase 4-wire+PE

Voltage: 380V±10%

Frequency: 50Hz±5Hz

DC features

Voltage range: 24v—maximum voltage (continuously adjustable)

Display accuracy: ≤0.5%FS

Output accuracy: ≤0.5%FS

Source effect: ≤0.2%FS

Load effect: ≤0.2%FS

Ripple (Vrms): ≤0.5%FS

Response time: ≤10mS（10%~90% sudden loading）

Protection function: Output overcurrent protection, output overvoltage protection, output compensation reversal protection, output overcompensation protection, power unit overheating protection, output short circuit protection

Communication interface: RS485（Standard）、RS232(Optional）、Ethernet port (optional)

External analog interface: Support emergency stop, start/stop, fault detection, operation status detection interface; 0-5V/4-20mA analog signal input control (optional)

Safety feature

Insulation resistance: ≥20mΩ

Voltage resistance: 2000VDC test 60S, no flying arcs, breakdown

Ground resistance: ≤100mΩ

Noise: ≤75dB

Protection grade: IP20

Cooling mode: Forced air cooling

Working environment

Ambient temperature: 0℃～40℃

Ambient humidity: 10%~90%(no condensation)

Altitude: ≤2000m

Size (W*H*D) mm: 800x2100x800mm
