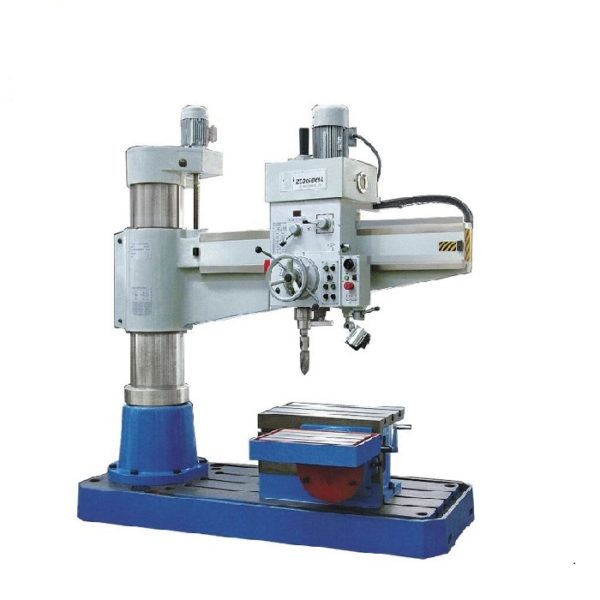

WMT CNC ZB3060×16 Radial Drilling Machine (4kW)

Max. drilling diameter (on Medium-carbon steel): φ62

Max. drilling diameter( on cast iron): φ72

Max. tapping diameter (on Medium-carbon steel): M46

Max. tapping diameter (on cast iron): M52

Max.Distance from spindle to generating line of column: 350-1600

Distance of horizontal movement for spindle box(manual): 1250

Max. distance between spindle end to the worktable surface of the base: 350-1250

Max. travel of the spindle: 315

Spindle taper bore: MT.5

Spindle speed steps: Stepless

Spindle speed range: 38-275; 275-2000

Spindle feed steps: 8

Spindle feed range: 0.06-1.00

Speed of rocker arm up and down movement: 1.2

Rotation angle of rocker arm.: ±180

Distance of spindle movement for calibrated dial each revolution: 122

Power of main motor(tranducer motor): 4

Power of motor for rocker arm up and down movement: 1.5

Power of oil pump motor for spindle box, column and rocker arm clamping: 0.75

Weight of machine(without worktable): 3800

Machine dimension (L x W x H): 2490×1000×2598
