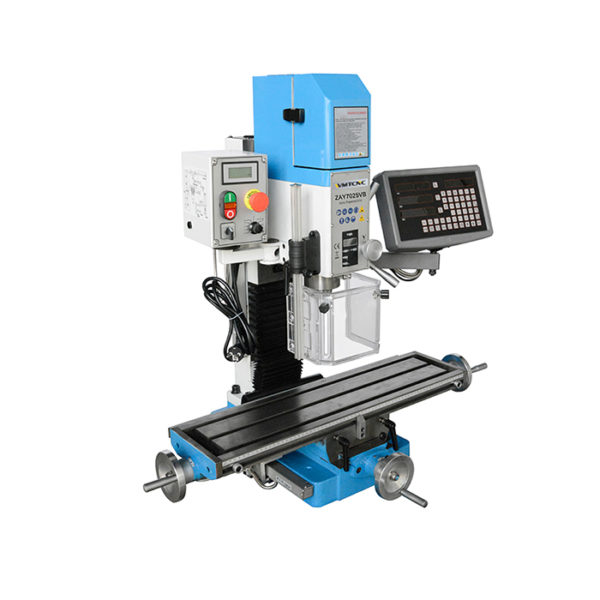

WMT CNC ZAY7025VB Milling and Drilling Machine (750W)

Drilling capacity.: 25mm

End milling capacity: 16mm

Face milling capacity: 63mm

Tapping capacity: M12

Spindle travel: 50mm

Distance from spindle to column: 198mm

Distance from spindle to table: 45-300mm

Taper of spindle: MT3

Spindle speed: Varier Stepless,75-1250rpm(L), 150-2500rpm(H)

Table size: 500x180mm

T-slots size: 12mm

Cross Table Travel: 180mm

Longitudinal Table Travel: 280mm

Headstock Travel: 255mm

Motor: 750W, DC Brushless

Packing Demension: 610x710x900mm

Weight(N/G): 120/145kgs

Loading amount /20″ container: 48pcs
