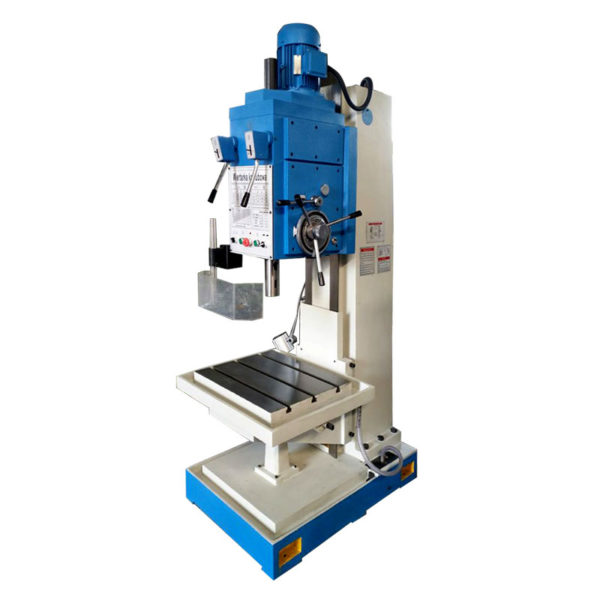

WMT CNC Z5150B Vertical Drilling Machine (3kW)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Max drilling diameter: 50mm
Spindle taper: MT5
Max taping capacity: M30X3
Stroke of spindle quill: 250mm
Spindle box travel(manual): 200mm
Spindle speed step: 12
Spindle speed range: 31.5-1400r.p.m
Spindle feed step: 9
Spindle feed range: 0.056-1.80mm/min
Table size: 560x480mm
Vertical travel: 300mm
Max distance between spindle and table surface: 750mm
Main motor powe: 3kw
Motor of cooling pumps: 40w
Speed of cooling pumps: 25L/min
T-slot NO./width/distance of table: 3/18/150 mm
Overall size: 1090x910x2465mm
Net weight: 1350kg
