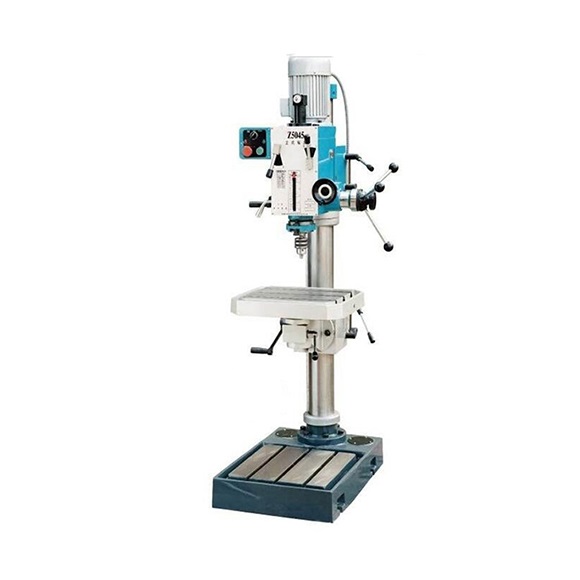

Max. drilling capacity: Φ45mm
Spindle taper: MT3/MT4/R8
Spindle travel: Φ130mm
Step of spindle speed: 6 steps
Range of spindle speed: 50Hz: 80-1250rpm
60Hz: 95-1500rpm
Min.distance from spindle axis to column: 290mm
Max.distance from spindle nose to worktable: 700mm
Max.distance from spindle nose to stand table: 1125mm
Max.travel of headstock: Φ250mm
Swivel angle of headstock(horizontal/vertical): 360°
Max.travel of worktable bracket: Φ600mm
Worktable size of avaliablity: 730×210mm
Swivel angle of table horizontally: 360
Size of stand worktable of avaliability: 417×416mm
Motor Power: 0.75kw/1.1kw/1.5kw
Speed of motor: 1400rpm
N.W/G.W: 470/530kgs
Packing size: 1850×950×1000mm
