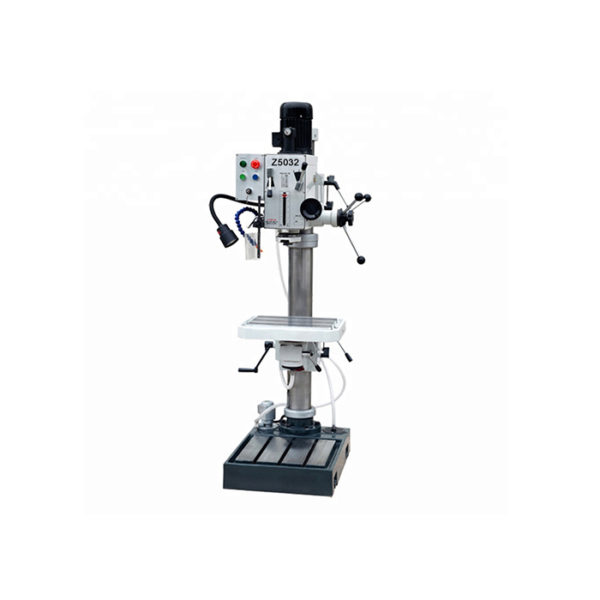

WMT CNC Z5032 Vertical Drilling Machine (1.1kW)

Max. drilling capacity: Φ32mm

Spindle taper: MT3/MT4/R8

Spindle travel: Φ130mm

Step of spindle speed: 6 steps

Range of spindle speed: 50Hz: 80-1250rpm

60Hz: 95-1500rpm

Step of spindle auto-feeding: 6 steps

Range of spindle auto-feeding amount: 0.06-0.30rpm

Min.distance from spindle axis to column: 290mm

Max.distance from spindle nose to worktable: 725mm

Max.distance from spindle nose to stand table: 1125mm

Max.travel of headstock: Φ250mm

Swivel angle of headstock(horizontal/vertical): 360°

Max.travel of worktable bracket: Φ600mm

Worktable size of avaliablity: 380×300mm

Swivel angle of table horizontally: 360°

Table leaned: 45°

Size of stand worktable of avaliability: 417×416mm

Motor Power: 1.1kw

Speed of motor: 1400rpm

N.W/G.W: 440/490kgs

Packing size: 1850×750×1000mm

Loading amount/20″ container: 18pcs
