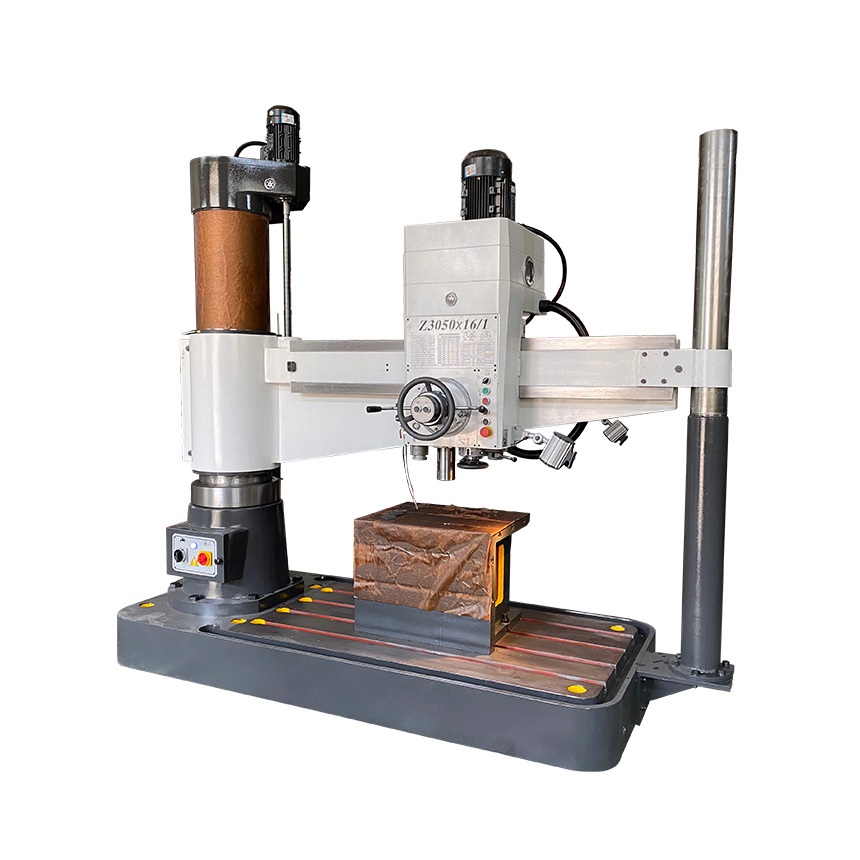

WMT CNC Z3050x16 Radial Drilling Machine

Max. drilling diameter: 50mm

Distance between spindle axis and column: 350-1600mm

Distance spindle nose and work surface of base: 320-1220mm

Rocker arm lifting distance: 580mm

Rocker arm lifting speed: 0.02m/s

Spindle travel: 315mm

Spindle taper: 5 Morse

Range of spindle speeds: 25-2000 r/min

Number of spindle speeds: 16 step

Range of spindle feeds: 0.04-3.20mm/r

Number of spindle feeds: 16 step

The maximum torque of the spindle: 500 N.M

Spindle maximum feed resistance: 18000N

Table size: 630×500mm

The spindle box of horizontal moving distance: 1250mm

Spindle motor power:4kW

Hydraulic clamping motor power: 0.75kW

Cooling pump motor power: 0.09kW

Arm lift motor power: 1.5kW

Machine weight: 3500kg

Overall dimension: 2500×1070×2840mm
