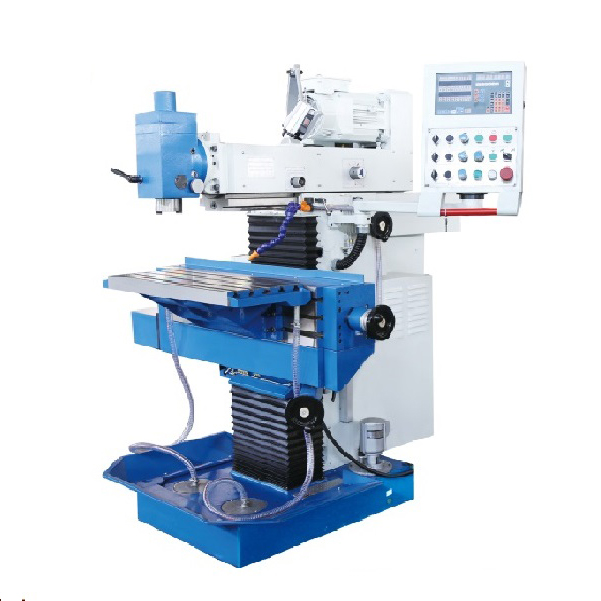

WMT CNC XL8140 Universal Milling Machine (3.7Kw)

Work space dimensions: 800*400mm

Vertical table dimensions: 1020*225mm

T-slots,work table: (6)14*63mm

T-slots,vertical table: (3)14*63mm

Table load capacity: 200Kg

Travel: Longitudinal(X): 500mm

Transverse(Y): 400mm

Vertical(Z): 400mm

Spindle axis-to-table surface distance:

Horizontal spindle: 145-545mm

Vertical spindle: 50-450mm

Speed range: (2)40-2000rpm

Spindle mount: ISO40

Feeds X Y Z axis: 10-1000mm/min

Rapid feed: 1200mm/min

Quill stroke: 60mm

Main motor rating: 3.7Kw

Feed motor rating: X:7.7N.M

Y:7.7N.M

Z:10N.M

Dimensions (L*W*H): 1500*1700*1800mm

Weight: 1500kg
