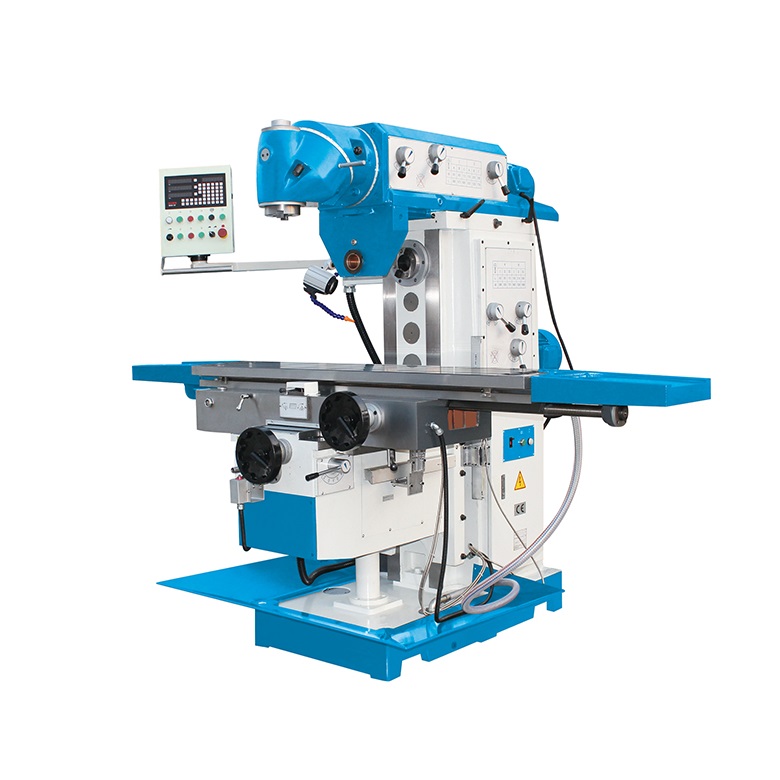

WMT CNC XL6436 Universal Milling Machine

Table size: 1325×360mm

Table travel (X/Y/Z): 750×300×450mm

Table feed (X/Y/Z): 30-750/20-500/15-375mm/min.

Spindle taper: 7:24 ISO50 (H/V)

Table load capacity (max.): 500kg

T-slots (qty/width/spacing): 3/18/80mm

Spindle speed (12 step): 60-1750rpm（V), 60-1800rpm（H）

Upper beam travel: 550mm

Distance between spindle nose and table surface: 196-656mm

Distance between horizontal nose and table surface: 20-480mm

Distance between spindle axis and arm surface: 200mm

Main motor power: 4KW(V), 5.5KW(H)

3 phase AC feeding servo motor torque: 10N.m

Overall size: 1800×2100×2000mm

N.W: 2650kg
