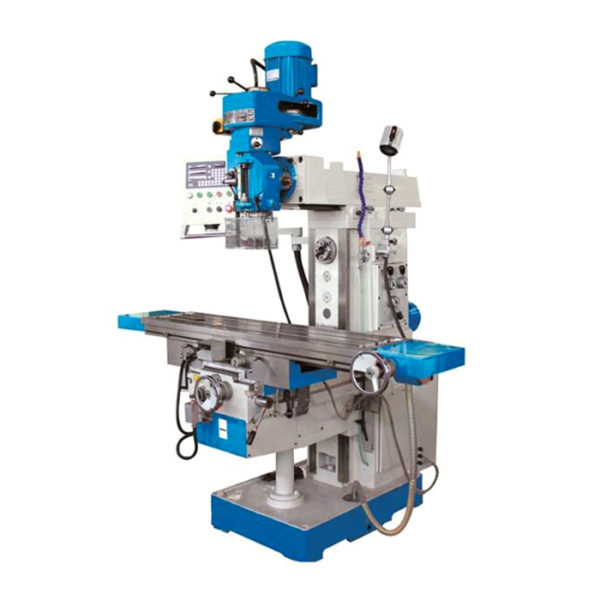

WMT CNC XL6330A Universal Milling Machine

Table size: 1370X300mm

Table travel (X/Y/Z): 820/300/400mm

Rapid speed of table (X/Y/Z): 1335/1335/1000mm/min

Spindle taper: Vertical: 3HP: R8 or ISO30; 5HP: ISO40, Horizontal: ISO40

Table feed (X/Y/Z): XY:30-830 Z:23-625mm/min

Distance between horizontal nose and table surface: 75-475mm

Distance between spindle axis and ram surface: 200mm

Spindle speed range: vertical: 1, variable speed 43-3225; 2, step speed 65-4660(16 steps)r/min, horizontal 35-1500 (12steps)

T-slots (No./width/pitch): 3/14/80mm

Arm travel: 450mm

Main motor power: vertical: 3hp / 5hp, horizontal: 3kw

Torque of X/Y/Z axis AC servo motor: 10N.m

Overall size: 1720×1680×2350mm

Net weight: 1650kg
