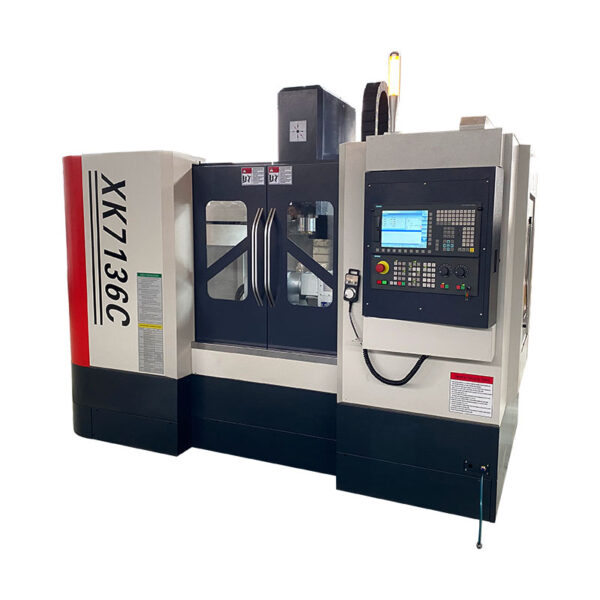

WMT CNC XK7136C CNC Milling Machine (5.5kw)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Worktable size (LxW): 1250x360mm
T-slot (NxWxD): 3/18/80mm
X axis travel: 900mm
Y axis travel: 350mm
Z axis travel: 500mm
Distance from spindle nose to worktable surface: 100-600mm
Distance from spindle center to column: 460mm
Rapid feed speed (X/Y/Z): 10/10/8m/min
Spindle taper: BT40
Spindle speed range: 8000rpm
Main motor power: 5.5kw
AC servo motor torque (X/Y/Z): 7.7/7.7/7.7N.m
Overall size (LxWxH): 2200x1850x2350mm
Net weight: 2400kg
