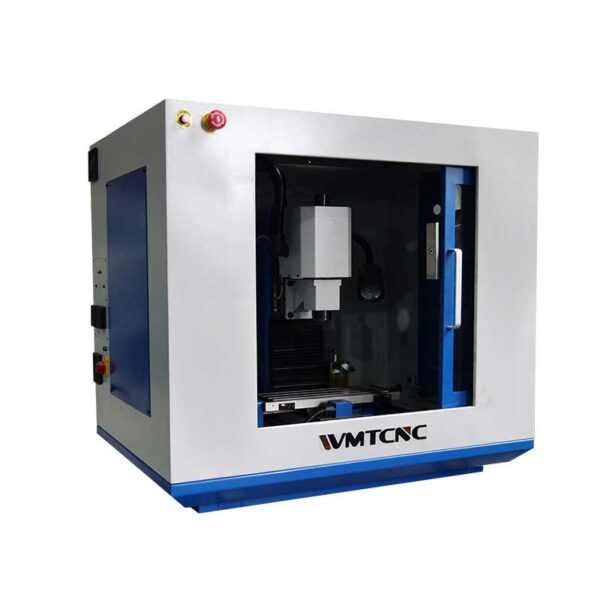

WMT CNC XK7115 Super CNC Milling Machine (500w)

Worktable size: 400×125mm

T-slot size: 3×8×35

Loading capacity of worktable: 20kg

X axis travel: 260mm

Y axis travel: 110mm

Z axis travel: 180mm

Distance from spindle nose to worktable surface: 60-240mm

Distance from spindle center to column: 125mm

Spindle taper: MT2

Spindle power: 500w

Spindle speed: 100-7000r/min

X/Y/Z rapid feed speed: 2000mm/min

X/Y/Z axis torque: X/Y:1.35 Nm Z: 2.2Nm

Positioning accuracy: 0.015mm

Re-positioning accuracy: 0.01mm

Voltage: 230/120V

N.W/G.W: 280/340kg

Machine size (LxWxH): 1040×860×940mm

Packing size (LxWxH): 1170×960×1100mm
