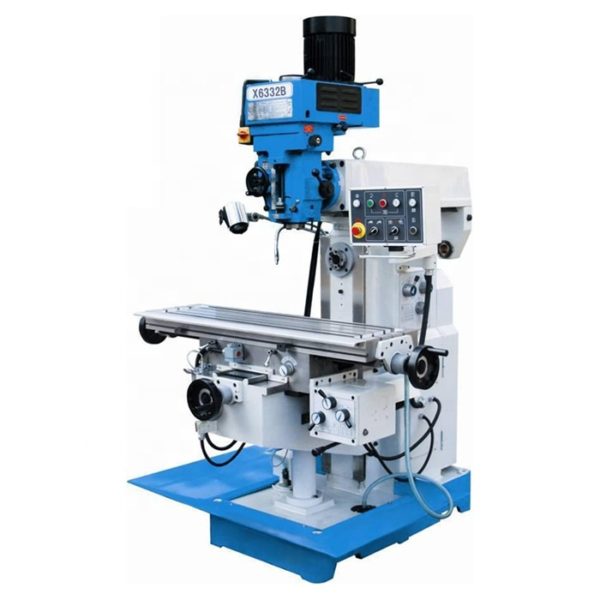

WMT CNC X6332B Universal Milling Machine (2.2kW)

Spindle taper: 7:24 ISO40 Vertical, NT 40 Horizontal

Milling head tilt (left/right): 90°

Spindle travel: 127mm

Spindle speeds range: 115-1750rpm, 40-1300 (horizontal 12 step)

Distance from spindle to column: 180-630mm

Distance from spindle to work table: 130-550mm

Arm travel: 450mm

Rotary arm: 360°

Table size: 1500×320mm

Max. travel of table: 600x300x420mm

T-slot number width distance: 3/14/70mm

Max load weight: 350kg

Main motor power: 2.2kW Vertical, 2.2 Horizontal

Motor of table power feed: 750W

Up/down motor of head stock: 1.1kW

Cool ant pump motor: 40W

Packing size: 1550x1650x2200mm

N.W/G.W: 1500/1700kg
