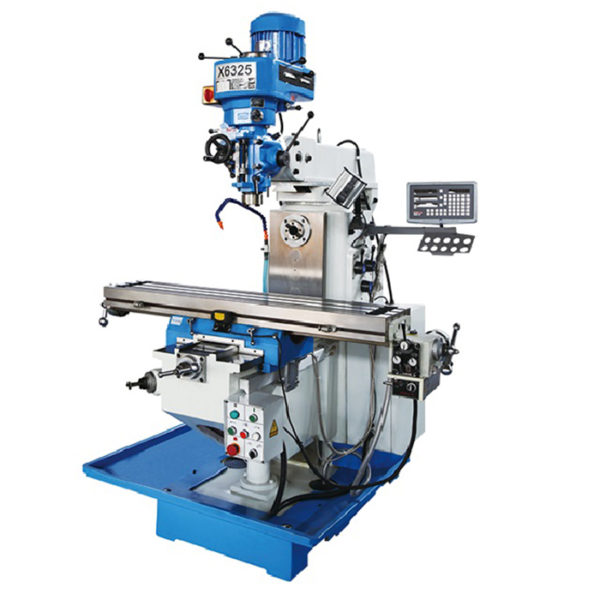

WMT CNC X6325 Universal Milling Machine (3HP)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Table size: 1270×254mm (Optional:1370×254mm)
T-slotes (No./Width/Pitch): 3/16/65mm
Table travel (X/Y/Z): 850×400×400mm
Distance between spindle nose and table surface: 60-460mm
Spindle speed: 66-4540rpm
Main motor power: 3HP
Spindle taper: R8 or NT30
Travel of spindle sleeve: 127mm
Ram travel: 400mm
Feed of spindle sleeve: 0.04/0.08/0.15mm/r
Milling head rotation: swivel:45° tiltle:90°
Machine overall size (L*W*H): 1700×1600×2150mm
N.W: 1200kg
