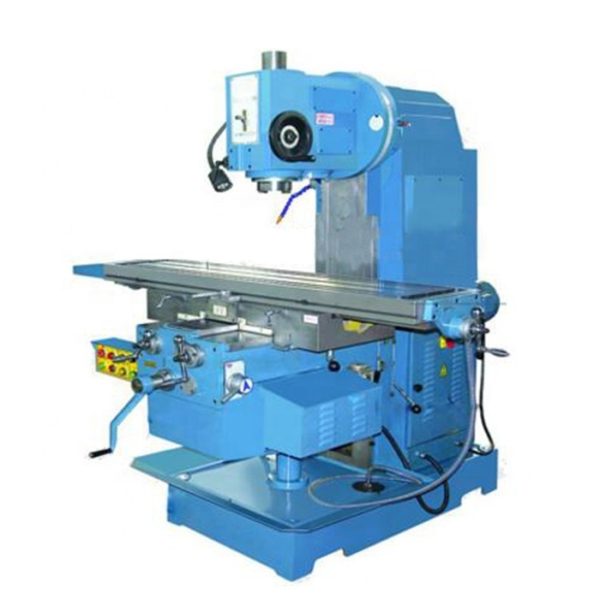

WMT CNC X5136S Universal Milling Machine (7.5Kw)

Spindle taper: NT50

Distance between spindle nose and table surface: 30-510mm

Distance between spindle axis and column guideway: 370mm

Spindle speed range: 50-1500r/min

Swivel angle of vertical milling head: ±45°

Stroke of spindle quill: 50mm

Table size: 1600x360mm

Table travel (X, Y, Z): 1000x380x450mm/min

Table feed (X, Y, Z): 10-1500/10-1500/10-750mm/min

Table rapid speed (X, Y, Z): 1500/1500/750mm/min

T-slot: 3/18/80mm

Main motor power: 7.5Kw

Torque of X/Y/Z axis AC servo motor: 15N.m

Overall size: 2250x2150x2450mm

Net weight: 2600kg
