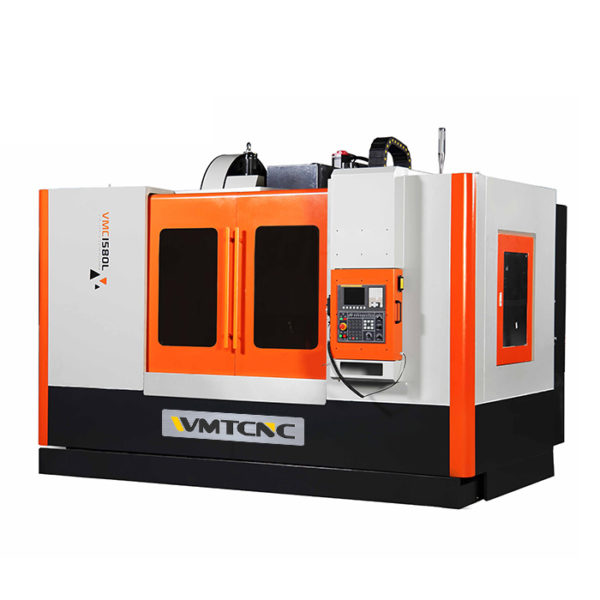

WMT CNC VMC1580L Vertical Machine Centre

Worktable size (LxW): 1600x800mm

T-slot (NxWxD): 7x22x110mm

X/Y/Z axis travel: 1500/800/700mm

Distance from spindle center to column: 865mm

Distance from spindle nose to worktable surface: 185-885mm

Spindle taper: BT50

Spindle power: 15/18.5kw

Max.spindle speed: 6000rpm

Max.feed speed: 8m/min

Rapid feed speed (X/Y/Z): 20/20/12m/min

X/Y/Z axis ball screw: 5010

Tool change time(T-T): 3.5s

Positioning accuracy (X/Y/Z): ±0.015mm

Re-positioning accuracy (X/Y/Z): ±0.010mm

LxWxH: 4300x3600x3200mm

Max.loading of worktable: 1500kgs

Machine weight: 15000kg
