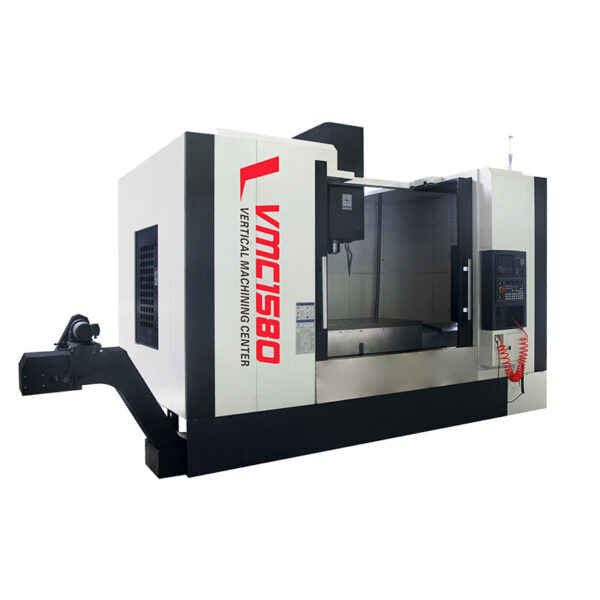

WMT CNC VMC1580 Vertical Machine Centre
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Worktable size: 1600X800mm
X, Y, Z travel axis: 1500X800X700mm
Booster cylinder: With spindle
T-siot size: 5-22X135
X, Y, Z screw model: 5016/5016/5016
Worktable load: 1500KG
X, Y, Z feeding speed: 24000, 24000, 18000 mm/min
Positioning accuracy: ±0.01mm
Repeat positioning: ±0.008mm
Spindle motor: 11/15KW
Distance from spindle center to column surface: 855mm
Distance from spindle nose to worktable: BT40:190-890/BT50:155-855mm
Net/Gross weight: 12/13T
