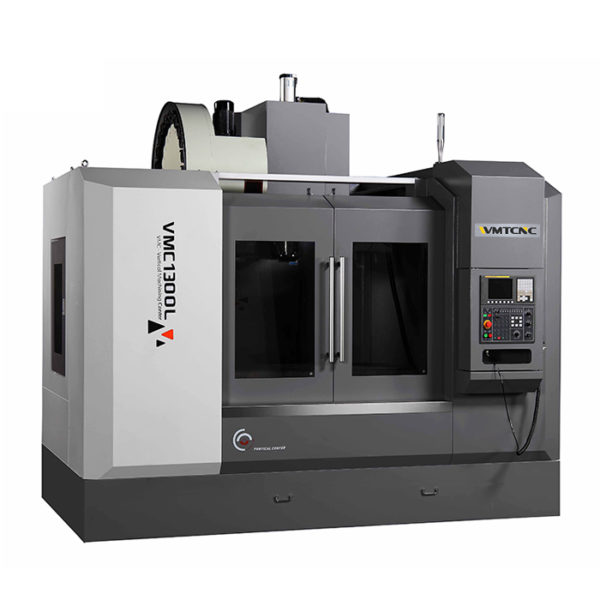

WMT CNC VMC1300L Vertical Machine Centre

Worktable size (LxW): 1400x700mm

T-slot (NxWxD): 5x18x115mm

X/Y/Z axis travel: 1300/700/700mm

Distance from spindle center to column: 775mm

Distance from spindle nose to worktable surface: 103-803mm

Spindle taper: BT50

Spindle power: 11/15kw

Max.spindle speed: 6000rpm

Max.feed speed: 10m/min

Rapid feed speed (X/Y/Z): 24/24/15m/min

X/Y/Z axis ball screw: 4012

Tool change time (T-T): 3s

Positioning accuracy (X/Y/Z): ±0.010mm

Re-positioning accuracy (X/Y/Z): ±0.005mm

LxWxH: 3330x2880x3250mm

Max.loading of worktable: 1000kgs

Machine weight: 11000kg
