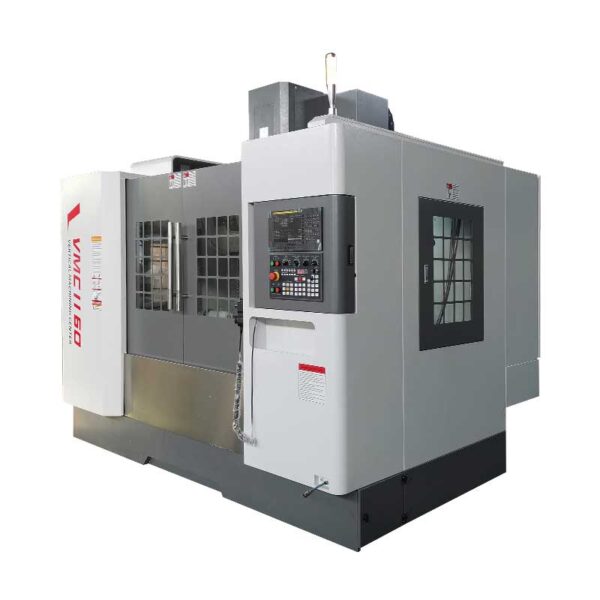

WMT CNC VMC1160 Vertical Machine Centre

X-axis Travel: 1100mm

Y-axis Travel: 600mm

Z-axis Travel: 600mm

Table size: 1200x600mm

Max.Loading: 800kg

T-Slot: 5x18x100mm

Spindle nose to table surface: 120-720mm

Spindle axis to column surface: 650mm

Spindle taper: BT40

Spindle speed: 8000rpm

Spindle motor: 11kw

Max.tool dia.: 80/150mm

Max.tool length: 200mm

Max.tool weight: 8kg

X,Y axis rapid movement rate: 24000mm/min

Z axis rapid movement rate: 20000mm/min

Cutting feed rate: 1-10000mm/min

Position accuracy: ±0.01mm

Repeat positioning accuracy: ±0.003/300mm

Coolant capacity: 200L

Coolant power: 440w

Dimensions: 3350x2300x2550 mm

Net Weight: 6200kg
