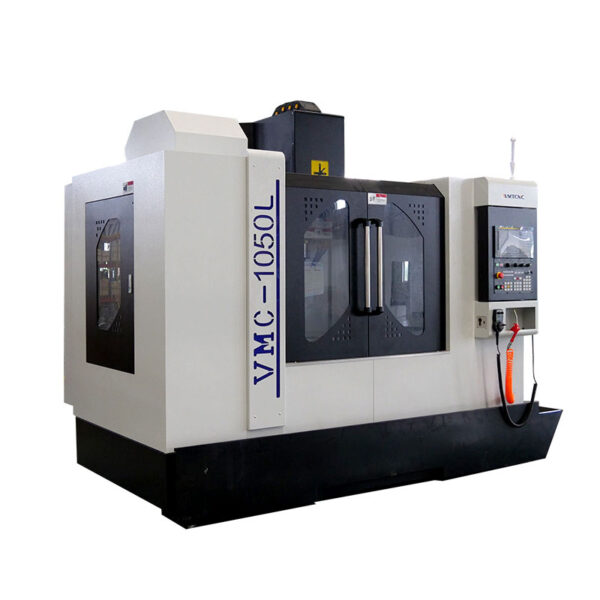

WMT CNC VMC1050L Vertical Machine Centre

Work Table

Size: 1000×500mm

Travel of 3 axis(X/Y/Z)mm1000/500/550mm

Max. table load: 1000kg

T-slot

Size: 5-18×120mm

Spindle

Spindle taper: BT40

Distance from Spindle center to Colum guide: 650mm

Distance of spindle head to table: 130-780mm

Max speed: 8000rpm

Motor power: 11/15kW

Accuracy

Positioning accuracy(X/Y/Z): ±0.01mm

Repeatability(X/Y/Z): ±0.005mm

Axis motor

Power of X/Y/Z: 2.5/2.5/2.5kW

Torque of X/Z: 16/24Nm

Feeding speed

Rapid feed of X/Y/Z: 36/36/24m/min (linear guide way)

Cutting feed of X/Y/Z: 10m/min

Other

Weight: 6000kg

Dimension: 3300*2500*2700mm

Voltage: 3 phase 380V
