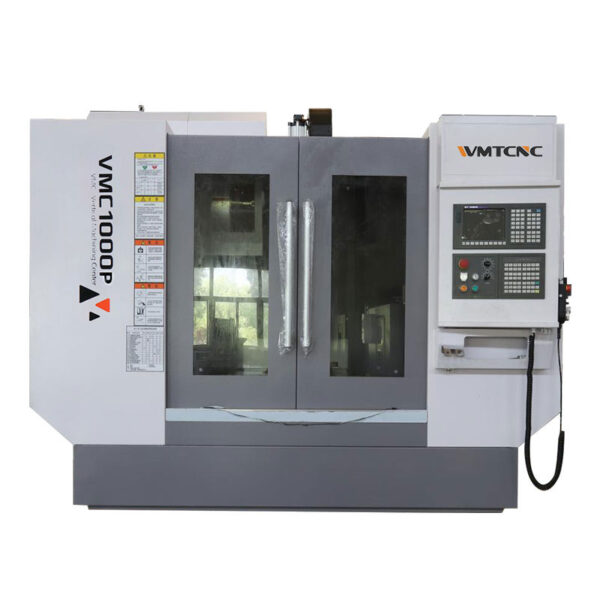

WMT CNC VMC1000P Vertical Machine Centre

Worktable size（LxW）: 1200x520mm

T-slot (NxWx D): 5x18x100mm

X/Y/Z axis travel: 1000/520/535mm

Distance from spindle center to column: 582mm

Distance from spindle nose to worktable surface: 80-615mm

Spindle taper: BT40

Spindle power: 11/15kw

Max.spindle speed: 8000rpm

Max.feed speed: 10m/min

Rapid feed speed (X/Y/Z): 48/48/32m/min

X/Y/Z axis ball screw: 4016

Max.length of tool: 300mm

Tool change time (T-T): 2.5s

Positioning accuracy (X/Y/Z): ±0.008mm

Re-positioning accuracy (X/Y/Z): ±0.005mm

LxWxH: 2600x2320x2780mm

Max.loading of worktable: 500kgs

Machine weight: 5800kg
