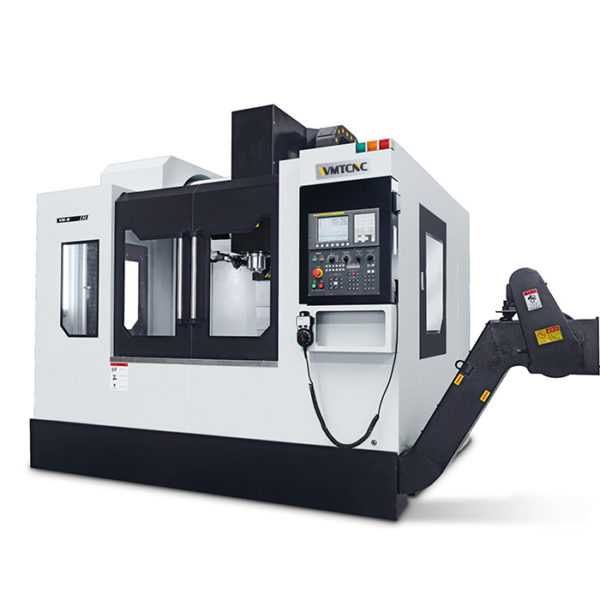

WMT CNC VH9 Vertical Machine Centre
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Worktable size (LxW): 1000x550mm
T-slot (NxWx D): 5x100x18mm
X/Y/Z axis travel: 930x570x570mm
Distance from spindle center to column: 630mm
Distance from spindle end to worktable: 130-700mm
Spindle taper: BT40
Spindle power: 11/15kw
Belt-drive spindle speed: 10000rpm
Direct-drive spindle speed: 12000rpm
Rapid feed speed (X/Y/Z): 48/48/48m/min
Positioning accuracy (X/Y/Z): ±0.005mm
Re-positioning accuracy (X/Y/Z): ±0.002mm
LxWxH: 2700x2350x2500mm
Max.loading of worktable: 600kgs
Machine weight: 6000kg
