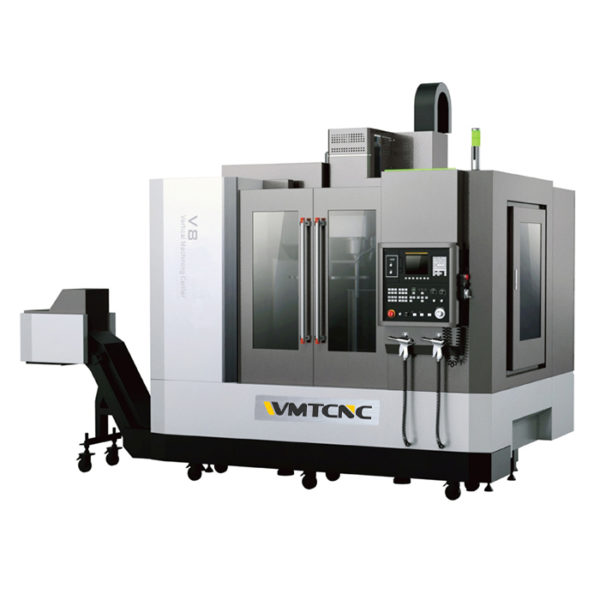

WMT CNC V8 Vertical Machine Centre

Worktable size (LxW): 500x1000mm

T-slot (NxWxD): 5x18x100mm

X/Y/Z axis travel: 850/500/580mm

Distance from spindle center to column: 623mm

Distance from spindle end to worktable: 120-700mm

Spindle taper: BT40

Spindle power: 7.5/11kw

Max.spindle speed: 12000rpm

Max.feed speed: 15000mm/min

Rapid feed speed (X/Y/Z): 48/48/36m/min

Max.length of tool: 300mm

Tool change time(T-T): 1.5s

Positioning accuracy (X/Y/Z): ±0.008mm

Re-positioning accuracy (X/Y/Z): ±0.005mm

LxWxH: 2540×2391×2700mm

Max.loading of worktable: 500kgs

Machine weight: 6200kg
