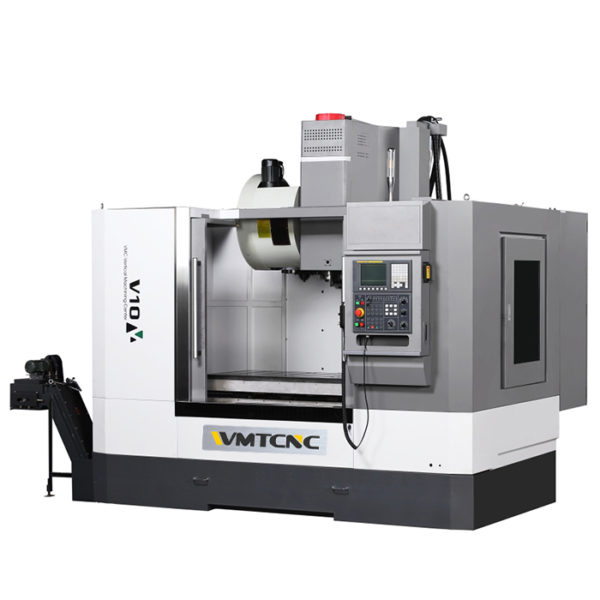

WMT CNC V10 Vertical Machine Centre
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Worktable size (LxW): 600x1200mm
T-slot (NxWxD): 5x18x100mm
X/Y/Z axis travel: 1000x600x630mm
Distance from spindle center to column: 667mm
Distance from spindle end to worktable: 120-750mm
Spindle taper: BT40
Spindle power: 11/15kw
Max.spindle speed: 12000rpm
Max.feed speed: 15000mm/min
Rapid feed speed (X/Y/Z): 36/36/30m/min
Max.length of tool: 300mm
Tool change time(T-T): 1.5s
Positioning accuracy (X/Y/Z): ±0.008mm
Re-positioning accuracy (X/Y/Z): ±0.005mm
LxWxH: 2850×2450×2850mm
Max.loading of worktable: 800kgs
Machine weight: 6800kg
