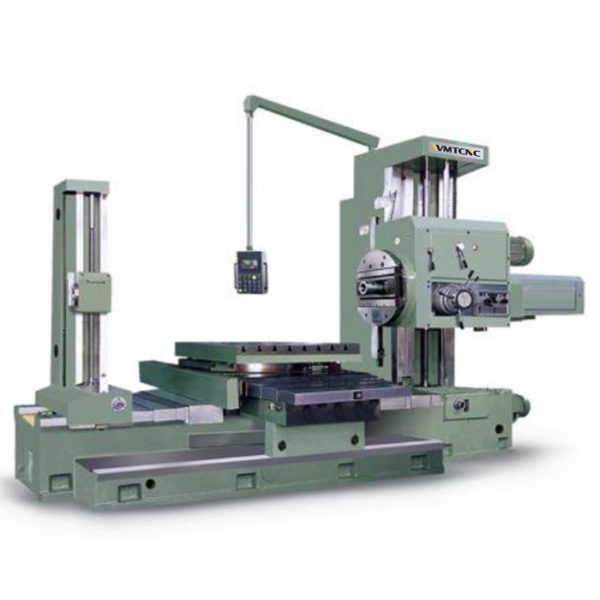

WMT CNC TPX6111B Milling Boring Machine

The spindle diameter: φ110mm

Maximum torque of spindle: 1225NM

Maximum torsional moment of flat disk: 1960NM

The spindle can withstand the maximum axial resistance: 12250N

Taper of spindle inner bore: Morse6

The longitudinal: 1000mm with back post, 1400mm without back post

The transverse: 1250mm

The biggest: 1100mm

Maximum travel of spindle: 600mm

The table can bear the maximum weight: 5000kg

Spindle speed range: 8-1000r/min

Speed range of flat rotary disc: 4-200r/min

Working area of table (length × width): 1400×1100mm

Fast-moving speed: 2500mm/min

Work fast turning speed: 1r/min

Measurement system reading accuracy (metric): 0.005mm

Boring accuracy: 1T7

Bore surface roughness: 3.2-1.6

Overall size of bed (LxWxH): 4910×3359×2950mm

Machine weight (approx.): 14500kg
