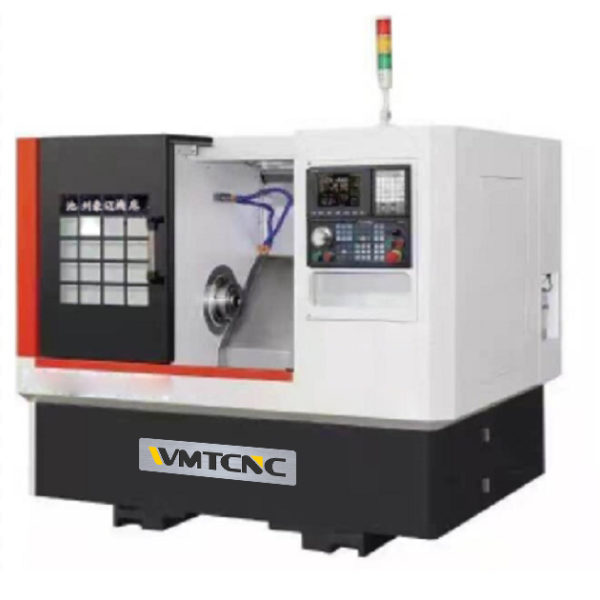

WMT CNC TCK6336S Slant Bed CNC Lathe (400mm)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Max.swing over bed: 400mm
Max.swing over cross slide: 180mm
Max.machining length: 200mm
X/Z axis travel: 400/300mm
Spindle unit: 140mm
Spindle nose: A2-5
Spindle bore: 48mm
Max.spindle speed: 4000rpm
Chuck size: 6″
Spindle motor power: 3.7kw
X/Z axis repeatability: ±0.003mm
X/Z axis feed motor torque: 6/6N.m
X/Z rapid traverse: 18/15m/min
Cutting tool shape size: 20x20mm
Guide form: 45 degree
Total power capacity: 9/11KVA
Machine dimension(LxWxH): 2200x1530x1780mm
Heavy weight: 2200kg
