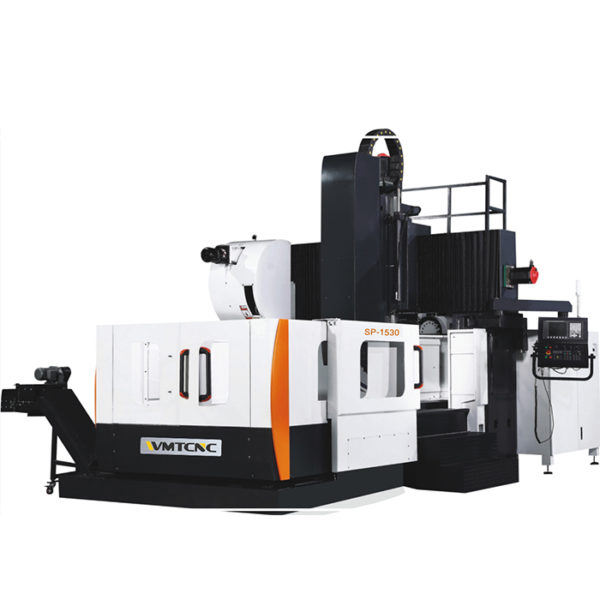

WMT CNC SP-1530 Gantry CNC Milling Machine (15/18.5KW)

X-axis travel: 3100mm

Y-axis travel: 1650 +160mm（tool change）

Z-axis travel: 800mm

Distance from spindle nose to worktable surface: 150-950mm

Worktable size(WxL): 3000×1300mm

T-slots size (NxWxD): 7-22-160mm

Max. load bearing of worktable: 5000kgs

X/Y/Z guideway size: Roller 2-45/2-45mm,Z-axis hard guideway

Rapid feed speed of X axis: 10000 mm/min

Rapid feed speed of Y axis: 10000 mm/min

Rapid feed speed of Z axis: 10000 mm/min

Main motor power: 15/18.5KW

Spindle model: BT50/Φ150

Motor torque: 143N.M

Spindle taper: BT50

Driven type: Direct drive/Gear box 1:4

X/Y/Z linear guideway size: X/Y-axis 2-45# roller linear guideways

X/Y/Z ball screw size: X-axis 6316,Y-axis 5016,Z-axis 5016

Max. tool dimension: Φ110/Φ220mm

Max. length of tool: 350mm

Max.tool weight: 20kgs

Positioning accuracy: 0.03mm

Re-positioning accuracy: 0.018mm

Machine weight: 24000kg

Overall size (LxWxH): 8800×5800×5000 mm
