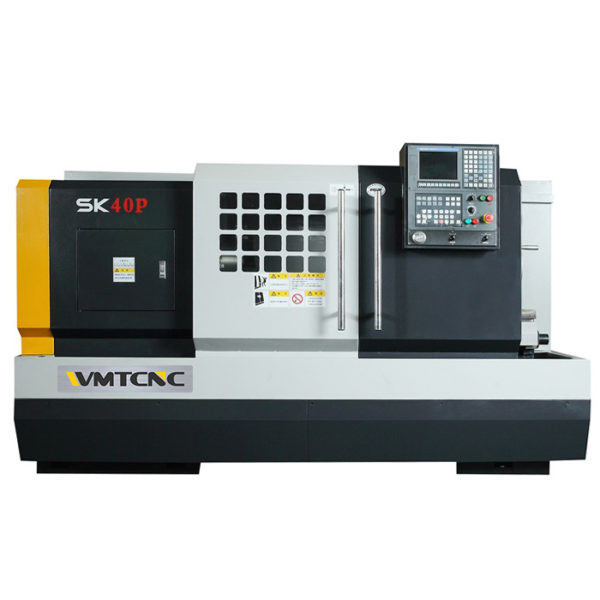

WMT CNC SK40P Flat Bed CNC Lathe (400mm)

Max. swing over bed (mm): φ400

Max. swing over slide (mm): φ200

Max. turning dia. (mm): φ400/350 *

Max. work length (mm): 710/620; 960/870; 1460/1370; 1960/1870;2960/2870

Max. turning length (mm): 570/500; 820/750; 1320/1250; 1820/1750;2820/2750

Spindle taper hole (mm): φ77

Spindle nose: ISO702/ⅠA2-8

Spindle speed (r/min): 3 gear stepless 21-1620; H:162-1620 M:66-660 L:21-210

Taper hole of spindle: Metric 1:20

Max. output torque of spindle (N.m): 800

Max. rapid traverse (m/min):

X-axis: 6(See OPERATOR’S MANUAL —ELECTRICAL PARTS for details)

Z-axis: 8(See OPERATOR’S MANUAL —ELECTRICAL PARTS for details)

Pitch of screw (mm): X direction: 5 Z direction: 6

Capacity of turret: 4 (standard) / 6 (optional)

Travel of turret (mm):

X direction: 300/235 (6-station)

Z direction: 600/850/1350/1850/2850

Dia. of tailstock quill (mm): φ75(φ80 hyd. tailstock)

Taper of tailstock quill (MT No.): MT No.5(MT No.3 hyd. tailstock with live spindle)

Max. travel of tailstock quill(mm): 150(130 hydraulic tailstock)
