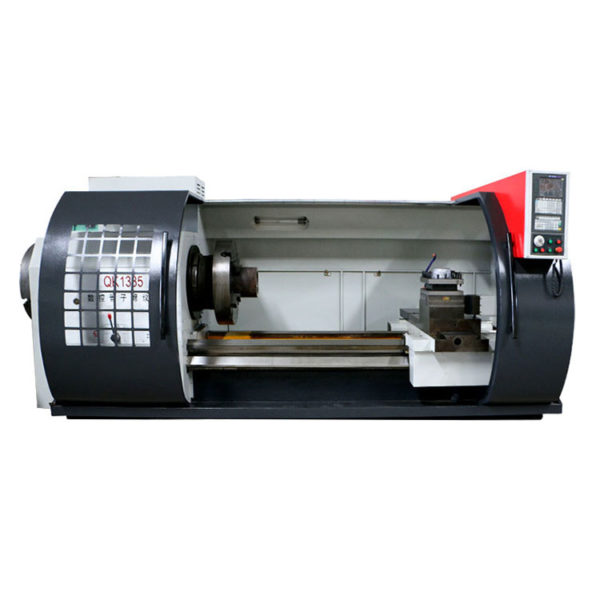

WMT CNC QK1335 CNC Pipe Threading Lathe Machine (1000mm)

Max dia.swing over bed(mm): 1000

Max dia.swing over cross slide(mm): 610

Max.length of work-piece(mm): 1500/3000/4000/5000

Width of bed(mm): 755

Spindle bore(mm): 360

Power of spindle motor: 22kW

Mode of spindle speed: Two gears, smooth adjustment

Range of spindle speed(r/min):(L): 30-130, (H): 65-260

Max.traverse of X/Z(mm): X:550; Z:1250

X/Z rapid traverse(r/min): 4000

X-axis motor

Speed(r/min):1500

Torgue(N.m): 18

Power(kw): 2.8

Z-axis motor

Speed(r/min): 1500

Torgue(N.m): 22

Power(kw): 3.5

Tailstock quill

Diameter(mm): 140

Travel(mm): 300

Taper: Morse NO.6

Electric tool-post

Model: SLD170A04N

No.of tool stations: Vertical four-station

Dimension(mm): 300x300

Chuck: K66-850 four jaw chuck

Positioning accuracy(mm): 0.02

Overall dimensions(L*W*H)(mm): 5000×2100×2100

Machine weight(kgs): 12000
