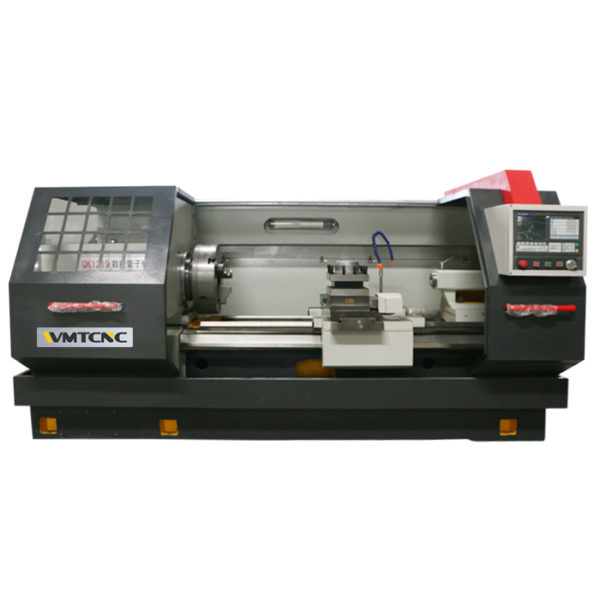

WMT CNC QK1319 CNC Pipe Threading Lathe Machine (630mm)

Max.swing over bed: Ф630mm

Max.swing over carriage: Ф340mm

Max. cutting length: 1000 / 1500 / 3000mm

Rail width: 550mm

Spindle bore: Ф200mm

Taper of spindle bore: MT6

Chuck size: 500mm

Range of spindle speed (L): 25-120rpm(H):100-500rpm

X-axis travel: 350mm

Z-axis travel: 850/1350/2850mm

X/Z rapid speed: 4m/min

Electronic turret: 4 -station

Max.section of tool: 32x32mm

Stroke of tailstock sleeve: 250mm

Diameter/Hole of tailstock sleeve: Ф100mm/MT5

Main motor power: 11kW

Overall dimensions (L x W x H): 2100/2420/2860/3320x1600x1830mm

Packing size (L x W x H): 2300/2620/3060/3520x1800x2030mm

Net weight: 5000/5500/6000kg

Gross weight: 6000/6550/7000kg
