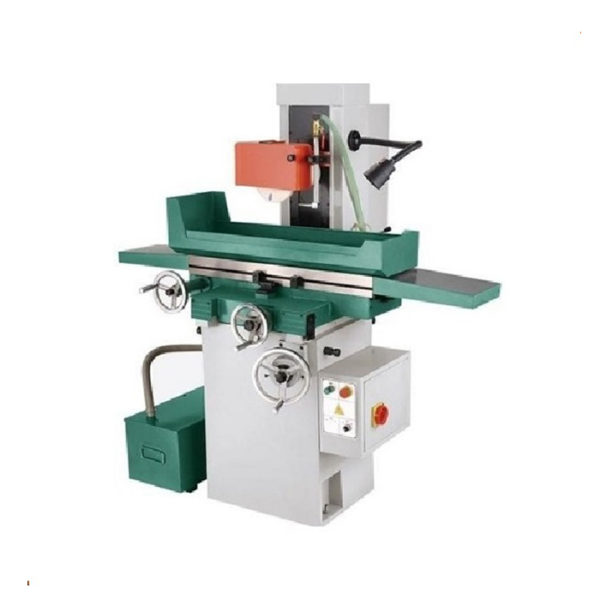

WMT CNC MY820 Surface Grinding Machine (1.1kW)

Working table

Table Size (L× W): 480×200mm

Max movement of working table(L× W): 530×220mm

(number×width): 1×14mm

Grinding wheel

Max distance from spindle center to table surface: 450mm

Wheel Size(Outer diameter×width×Inner diameter): φ200×20×Φ31.75mm

Wheel speed: 50HZ: 2850r/min

60HZ: 3440r/min

Feed amount

Longitudinal speed of working table: 3月20日m/min

Cross feed(front and rear) (Per revolution): 2.5mm

On handwheel (Per graduation): 0.02mm

Vertical (up and down) feed (Per revolution): 1.25mm

On handwheel (Per graduation): 0.01mm

Motor power

Spindle motor: 1.1kW

Coolant pump motor: 40W

Hydraulic system

Hydraulic motor: 1.5kW

Working pressure: 3Mpa

Oil tank capacity: 80L

Max flow: 18L/min

Working precision

The parallelism of working: 00:00.0mm

Surface to base level

Surface roughness: Ra0.32μm

Weight

Net: 750kg

Gross: 850kg

Overall dimension(L×W×H): 1680x1140x1760mm

Package dimension(L×W×H): 1630x1170x1940mm
