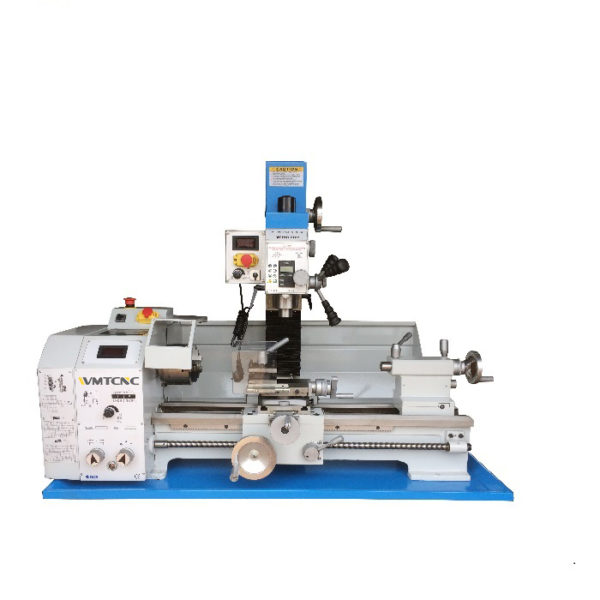

WMT CNC MPV280 Combined Lathe (1.1kw)

Distance between centers: 700mm

Swing over bed: 280mm

Swing over cross slide: 170mm

Spindle taper: MT4

Width of bed: 180mm

Spindle bore: 26mm

Range of spindle speeds (variable speed): 50-2500rpm

Range of cross feed: 0.07 -0.40mm /r

Range of longitudinal feed: 0.085-0.832mm/rev

Range of inch threads: 8-56T.P.I

Range of metric threads: 0.2 -3.5mm

Top slide travel: 65mm

Cross slide travel: 180mm

Tailstock quill travel: 75mm

Taper of tailstock quill: MT2

Main motor: 1.1kw

Drilling and milling head: BF20

Spindle taper: MT2

Spindle travel: 52mm

Range of spindle speeds (variable speed): 50-3000rpm

Max.distance from spindle nose to table: 380mm

Max.distance from spindle to columm: 185mm

Motor power: 850w

Packing size (for machine): 137x850x1050mm

Packing size (for stand): 800x580x415mm

N.W: 280kgs
