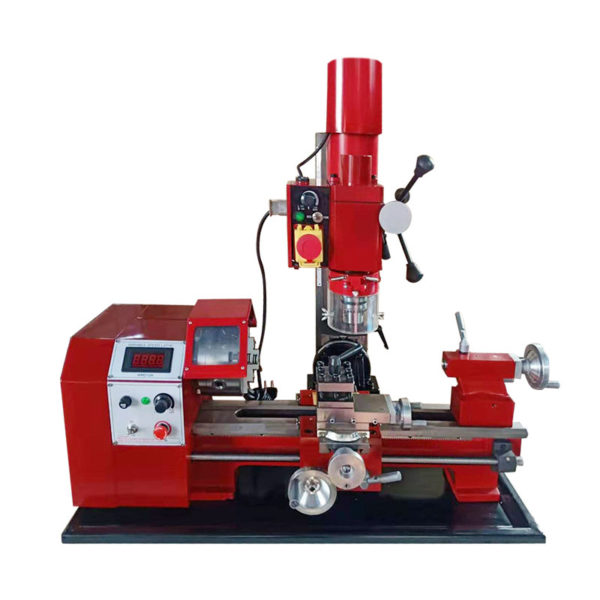

WMT CNC MPV210 Combined Lathe

Distance between centers: 400mm

Max swing over bed: 210mm

Spindle accuracy: 0.01-0.03mm

Travel of top slide: 55mm

Spindle taper: MT3

Chuch dia.: 125mm

Spindle bore: 38mm

Width of bed: 100mm

Range of metric threads: 0.5-3mm

Travel of cross slide: 75mm

Tailstock quill travel: 60mm

Taper of tailstock quill: MT2

Motor power: 600W 220V

Range of spindle speed(variable): 0-2500rpm

Drilling and milling head

Power: 550w

Low spindle speed: 0-1100r/min ±10%

High spindle speed: 0-2500r/min ±10%

Max drilling dia: 13mm

Max.milling dia: 16mm

Max.face mill: 30mm

Headstock travel: 220mm

Spindle taper: MT3
