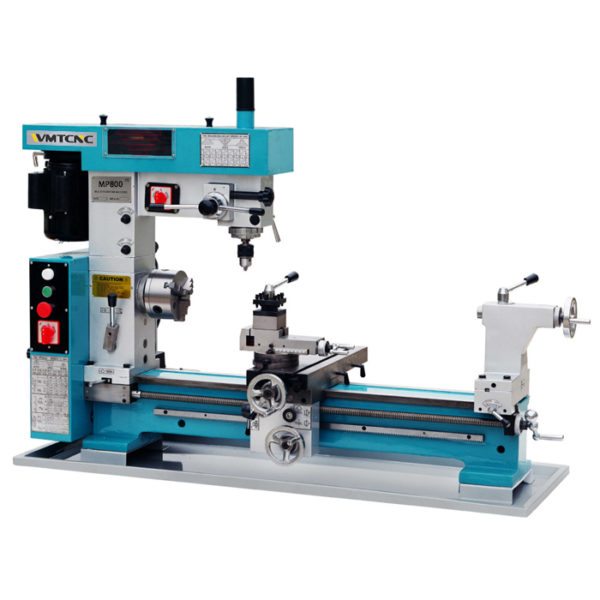

WMT CNC MP800 Combined Lathe (0.75kw)

Swing over bed: 420mm

Distance between centers: 800mm

Max. longitudinal travel: 740mm

Max. cross travel: 200mm

Spindle taper: MT4

Spindle bore: φ28mm

Step of spindle speed: 7 steps

Range of spindle speed: 160-1360rpm

Metric thread range: 0.2-6mm

Inch thread range: 4-120T.P.I

Longitudinal range of automatic feeding: 0.05-0.35mm/ 0.002-0.014″

Cross range of automatic feeding: 0.05-0.35mm/0.002-0.014″

Max. drilling capacity: φ22mm

Worktable size (L×W): 475×160mm

Max. end mill: φ28mm

Max. face mill: φ80mm

Distance between spindle center and column: 285mm

Distance between spindle and worktable: 306mm

Headstock travel of up and down: 110mm

Spindle taper: MT3

Step of spindle speed: 16steps

Range of spindle speed: 120-3000rpm

Swivel degree of headstock: ±360°

Motor power: 0.75kw

Packing size: 1430×580×1100mm

N.W/G.W: 275/325kgs
