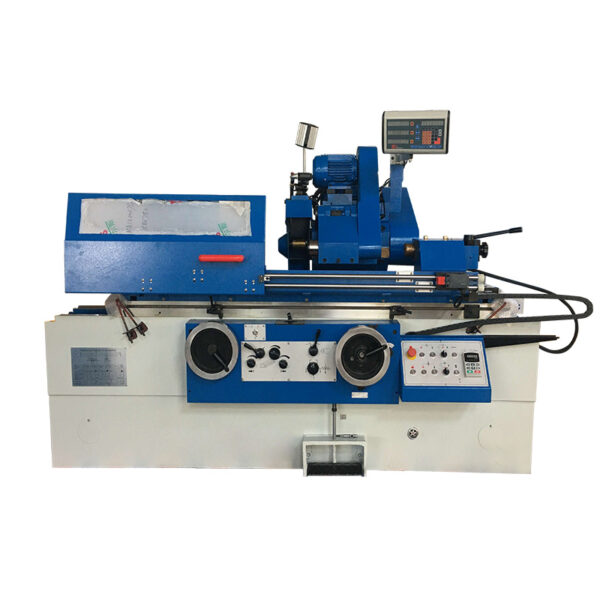

WMT CNC MA1320 Cylindrical Grinding Machine (5.43kW)

External grinding diameters: φ8～200mm

Center height: 135mm

Max. worktable traverse: 600mm

Hydraulic travel speed: 0.1～4m/min

Max.workpiece weight: 50kg

Grinding length External: 500mm

Swivel range of worktable: -5°～+7°

Max.wheel peripheral speed: 35m/s

External wheel size: Max.φ400x50xφ203mm, Minφ280x50xφ203mm

Headstock and tailstock center: NO.4 morse

Total motor power: 5.43kW

Machine overall dimension（LxWxH): 2500x1800x1650mm

Machine weight: 3040kg

Roundness: 1.5μm（O.D）

Uniformity of dia.in longitudinal section: 5μm（O.D）

Surface roughness: Ra0.32μm（O.D）
