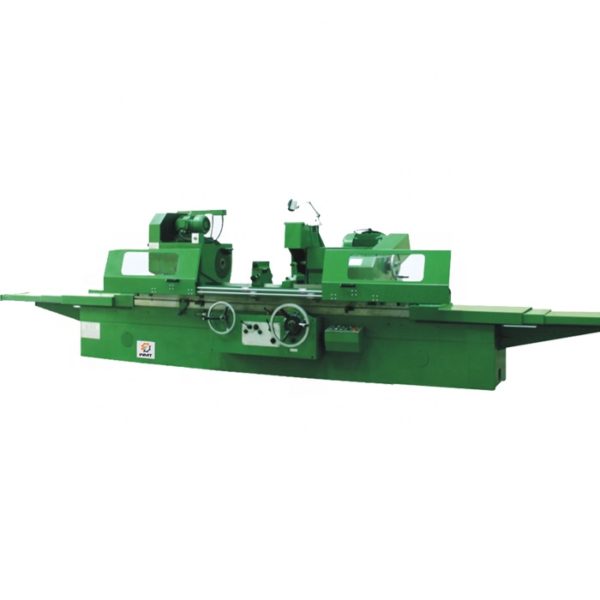

WMT CNC M1350B Cylindrical Grinding Machine (20.63kW)
Grinding length(O.D/I.D): 1500/2000/3000/4000mm
Grinding dia.(O.D/I.D): φ500mm
Center height: 270mm
Max.worktable traverse: 1500/2000/3000/4000mm
Max.workpiece weight: 1000kgs
Worktable speed: 3m/min
Max.wheel peripheral speed: 35m/s
External wheel size: φ750x75xφ305mm
Automatic intermittent infeed (coarse/ fine): 0.02/0.0025mm
Manual microfeed (coarse/ fine): 0.02/0.0025mm
Total motor power: 20.63kw
Machine overall dimension（LxWxH）:
5320x2140x1550mm
6090x2140x1550mm
10240x2140x1550mm
12280x2140x1550mm
Machine weight: 8400/9700/11200/12800kgs
