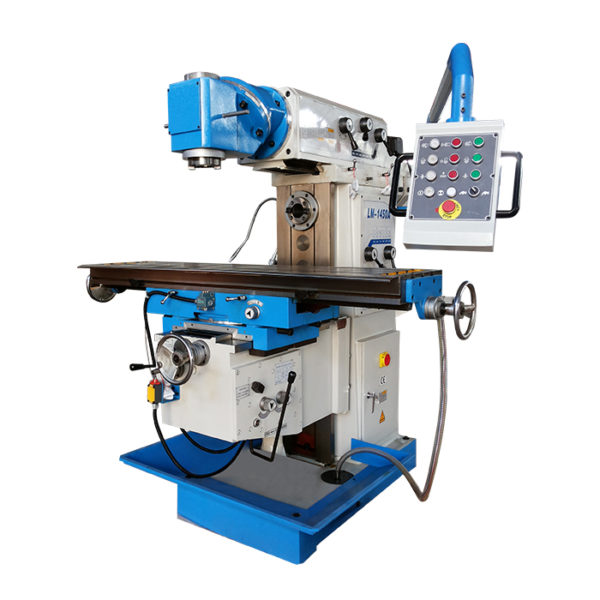

WMT CNC LM1450A Universal Milling Machine (4.0kw)

Spindle taper: ISO50(V) ISO50(H)

Distance from vertical spindle to working table: 0-450mm

Distance between spindle axis and ram surface: 100-500 mm

Arm travel: 500mm

Rabge of spindle speed: (12)60-1750r.p.m(V).(12)60-1800r.p.m(H)

Swivel angle of swivel head: 360degrees

Workbench maximum turning around: 45 degrees

Table size: 1600x360mm

Table travel(horizontal/cross/vertical): 1000/340/450mm

Range of longitudinal travel: (8steps)30-630mm/min(max2000)

Range of cross travel: (8steps)30-630mm/min(max2000)

Range of vertical travel: (8steps)18-300mm/min (max630)

T-slot NO./width/distance of table: 3/18/80mm

Main motor: 4.0kw (V), 4.0KW(H)

Motor of cooling pumps: 120w

Speed of cooling pumps: 25L/min

Max weight of workpiece: 600kg

Overall dimension: 2120x2000x2250mm

N.W/G.W: 2650/2850kg
