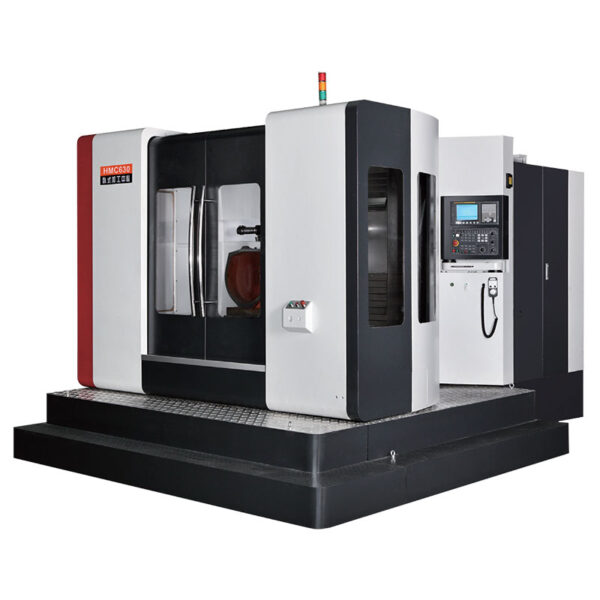

WMT CNC HMC630 Horizontal Machining Center (15/18.5kW)

Table size: 630×700mm

Maximum weight support of table: 950kg

Number of workstations: 1

Distance from spindle center to workbench as the straight line: 120~870mm

Workpiece diameter: 1380mm

Work schedule (x/y/z): 1050/750/900

Fast moving distance (X/Y/Z): 30/30/30m/min

Spindle power: 15/18.5kW

The highest speed: 6000rpm

Spindle diameter: 100mm

Positioning accuracy: 0.01mm

Repeat positioning accuracy: 0.006mm

Dao database: 24T

Tool change time: 4.5s

Length x width x height: 4800x3700x2800

Machine weight: 12000kg
