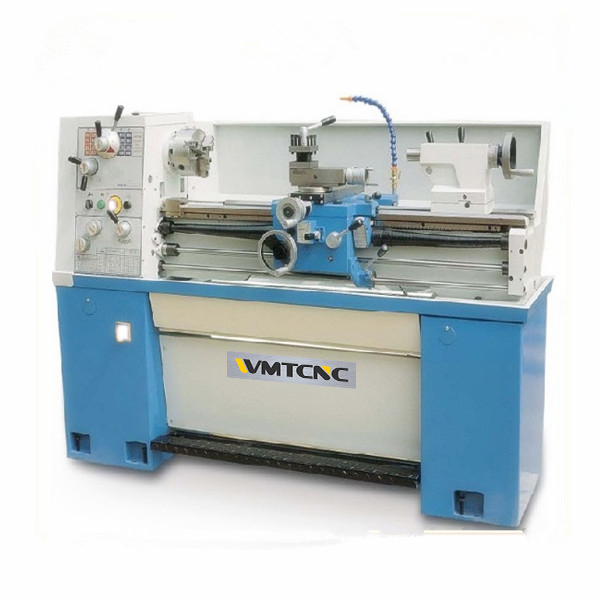

WMT CNC GH1340W Bench Lathe

Max.Swing.over bed: Φ330mm(13″)

Max.Swing.over cross slide: Φ185mm(7-7/25″)

Max.Swing.over gap: Φ480mm(19″)

Bed width: 260mm(10″)

Distance between centers: 1000mm(40″)

Taper of spindle bore: MT5

spindle bore: Φ40(1-1/2″)

Steps of spindle speeds: 12steps

Range of spindle speeds: 40-1800rpm

Spindle nose: D-4

Metric thread range: 0.45~7.5mm(22kinds)

Inch screw thread range: 4~112TPI(40kinds)

Range of longitudinal feeds: 0.03-0.688mm(0.0011-0.0271″in/rev)

Range of cross feeds: 0.015-0.220mm(0.0003″-0.01″in/rev)

Diameter of leadscrew: Φ22mm(7/8″)

Pitch thread of leadscrew: 4mm(8T.P.I)

Travel of tailstock quill: 120mm(4-3/4″)

Diameter of tailstock quill: 45mm(1-25/32″)

Taper of tailstock quill: MT3

Main motor power: 1.5/2.4(3HP)

Coolant pump motor power: 0.04(0.055HP)

Packing size: 1900×760×1460mm

N.W/G.W: 960/1090kg
