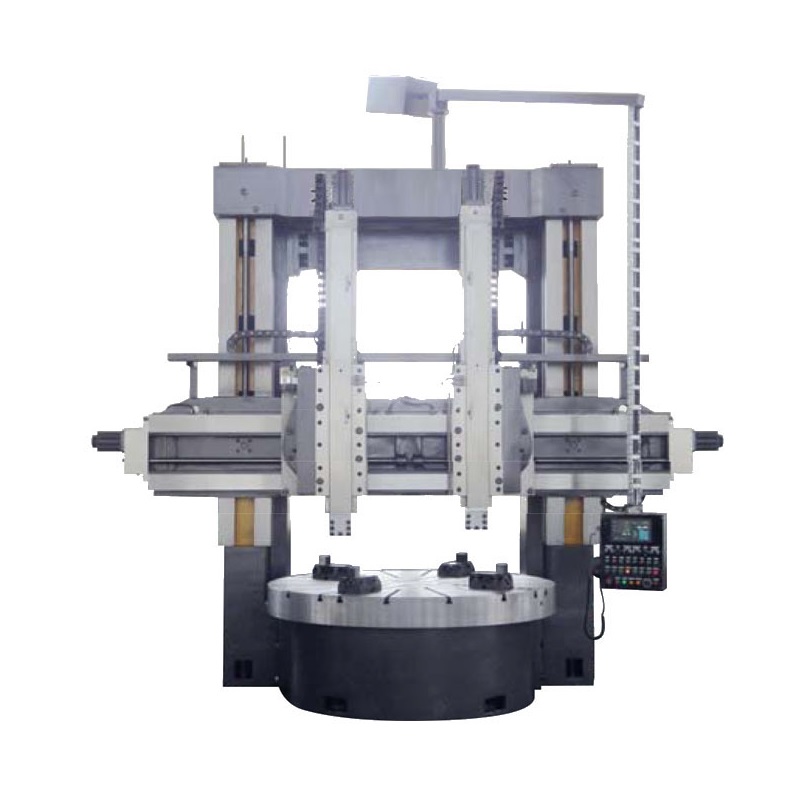

WMT CNC DVT5235C Vertical Lathe (DC75kw)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Table dia.: 3150mm
Max. turning dia.: 3500mm
Max. workpiece height: 2000/2500/3150mm
Max. workpiece weight: 20/32t
Table speed step: 16(II stepless)
Table rotation speed range: 2-63/0.4-40r/min
Max. torque of table: 63/80KN.m
Horizontal travel of toolpost: 20-2030mm
Vertical travel of toolpost: 1000/1250/1600mm
Crossam travel: 1650/2150/2750mm
Main motor power: AC55/DC75kw
N.W: 53/58/63t
Overall size(LXWXH): 6650x6300x5270/5770/6500mm
