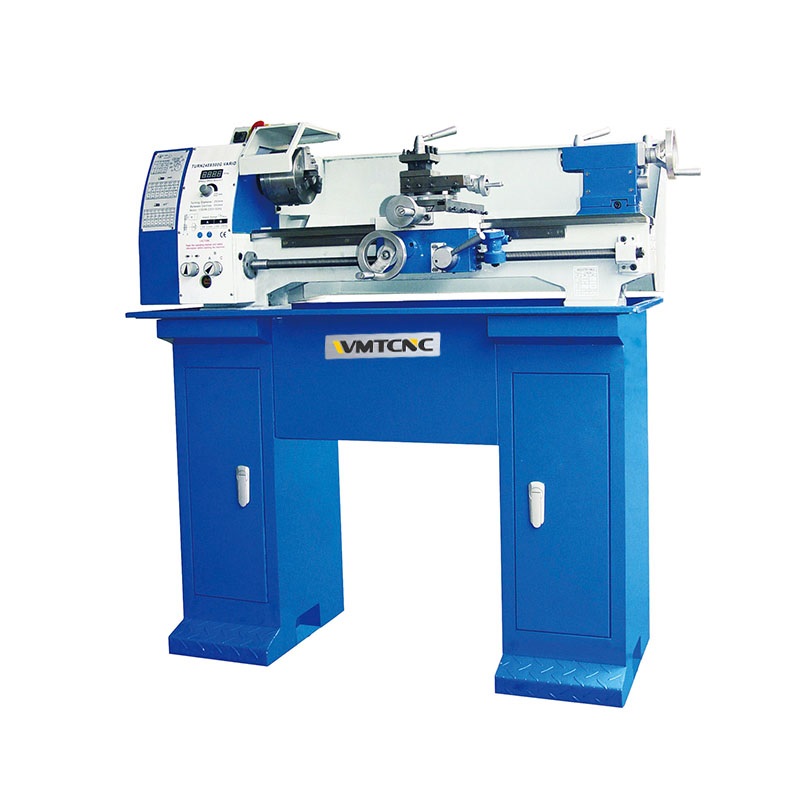

WMT CNC D280V Variable Lathe (1500W)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Max. swing over bed: φ280mm
Distance between centers: 700mm
Swing over cross slide: 125mm
Width of bed: 180mm
Spindle bore: 26mm
Taper of spindle bore: MT4
Range of spindle speeds(variable speed): 50-2500rpm
(6 steps): 150 300 600 500 1000 2000rpm
Metric threads can be cut: 0.2-4mm
Inch threads can be cut: 8-56TPI
Top slide travel: 70mm
Cross slide travel: 140mm
Tailstock quill travel: 70mm
Taper of tailstock quill: T2
Motor power: 1500W
NW/GW: 200/230kg
Packing size(LXWXH): 1450X700X680mm
