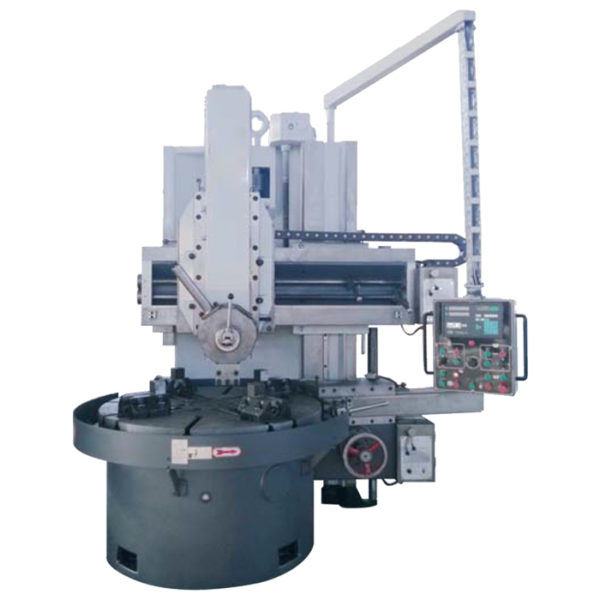

WMT CNC CX5116 Vertical Lathe (30kw)

Table dia.: 1400mm

Max. turning dia.: 1600mm

Max. workpiece height: 1000/1200/1400/1600mm

Max. workpiece weight: 5t

Table speed range: 5-160r/min

Table rotation speed step: 16

Vertical toolpost feed range: 0.8-86 r/min

Horizontal travel of vertical toolpost: 915mm

Vertical travel of vertical toolpost: 800/1000mm

Horizontal travel of side toolpost: 650mm

Vertical travel of side toolpost: 1000mm

Crossam ram travel: 850/1050/1250/1450mm

Tool bar section size(Lx W): 30x40mm

Main motor power: 30kw

Feeding motor power: 1.3/1.8kw

N.W: 12.7t

Overall size(LXWXH): 2662x2800x3550mm
