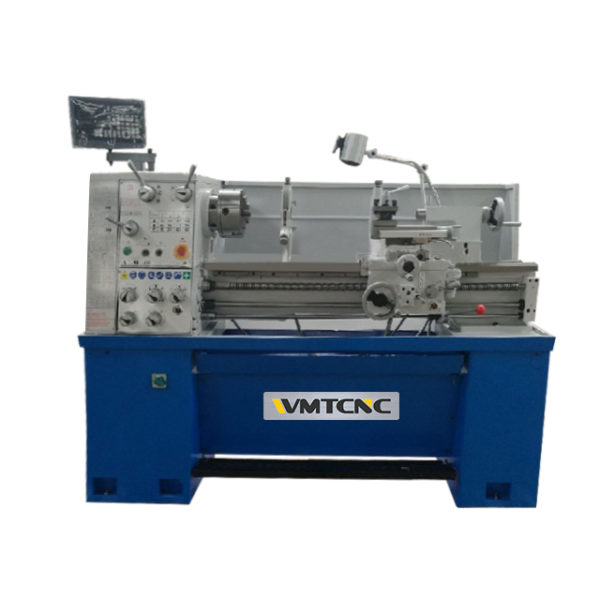

WMT CNC CQ6240 Bench Lathe (2.2KW)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Max. swing over bed: 400mm
Max. swing over cross slide: 250mm
Max. swing over gap: 520mm
Distance between centers: 1015mm
Width of bed: 218mm
Spindle bore: 52mm
Spindle taper: MT6
Spindle nose: D5
Range of spindle speed: 65-1800rpm
Range of longtudinal feeds: 0.0527-1.2912mm/rev
Range of cross feeds: 0.011-0.276mm/rev
Range of metric threads: 0.4-7mm
Range of inch threads: 4-60TPI
Taper of tailstock: MT4
Motor power: 2.2KW (3HP)
Packing size: 1940x890x1545mm
NW/GW: 760/840kg
