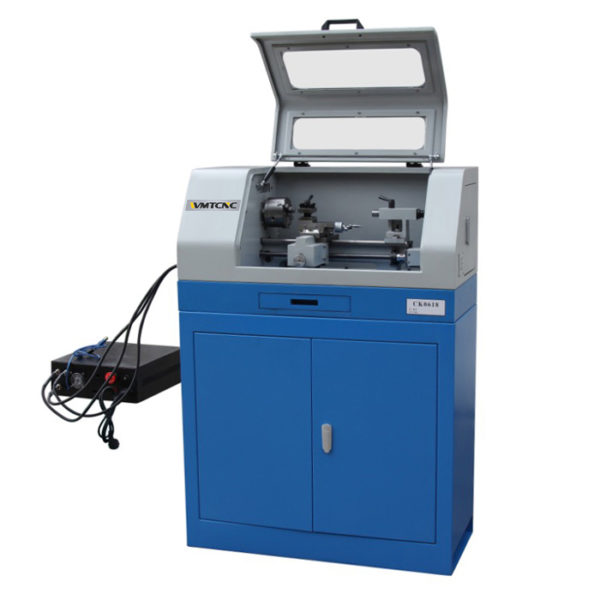

WMT CNC CNC180 Flat Bed CNC Lathe (180mm)

Max swing over bed: 180mm

Max.swing over carriage: 300/350mm

Max.length of work pieces: 300mm

Spindle bore: 20mm

Spindle taper: MT3

Spindle speed: 50-2250rpm

Metric thread cutting: 0.5-2.5mm

Inch thread cutting: 12-52TPI

Electric toolpost: 4-position

X Travel: 60mm

Z Travel: 250mm

X Moving speed: 800mm/min

Z Moving speed: 1200mm/min

Spindle motor power: 400w (optional:550w)

X Motor power: 1.5NM

Z Motor power: 2NM

Min. setting unit: 0.001mm

Tailstock diameter: 20mm

Tailstock Travel: 50mm

Tailstock taper: MT2

Overall size: 900X400X1250mm

Net weight: 90kg
