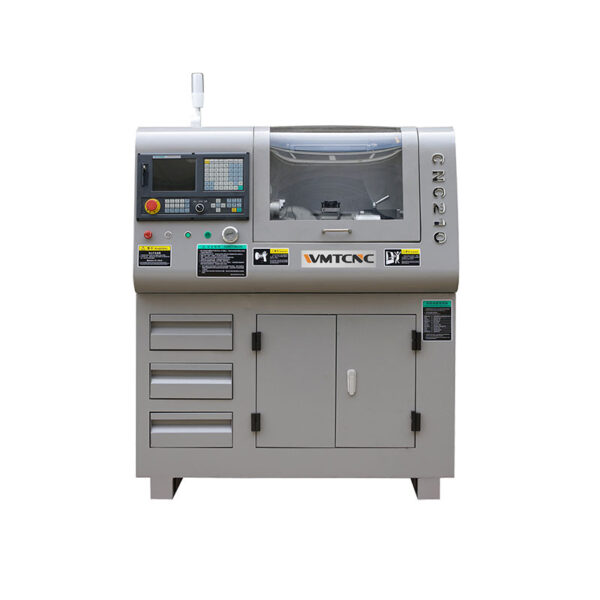

WMT CNC CNC-210 Flat Bed CNC Lathe (210mm)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Max. swing over bed: 210mm
Distance between centers: 400mm
Spindle bore dia.: 26mm
Spindle taper: MT4
Spindle speed: 3000rpm
Tool post: 4-position
Gangtool bar size: 12mm
X-axis travel: 90mm
Z -axis travel: 300mm
X moving speed: 2000mm/min
Z moving speed: 2000mm/min
Spindle motor power: 1.2kw
X motor torque: 3N.m
Z motor torque: 3N.m
Min. setting unit: 0.001mm
Tailstock dia.: 22m
Tailstock tavel: 50mm
Tailstock taper: MT2
Overall size: 1170X700X860mm
N.W: 200kgs
