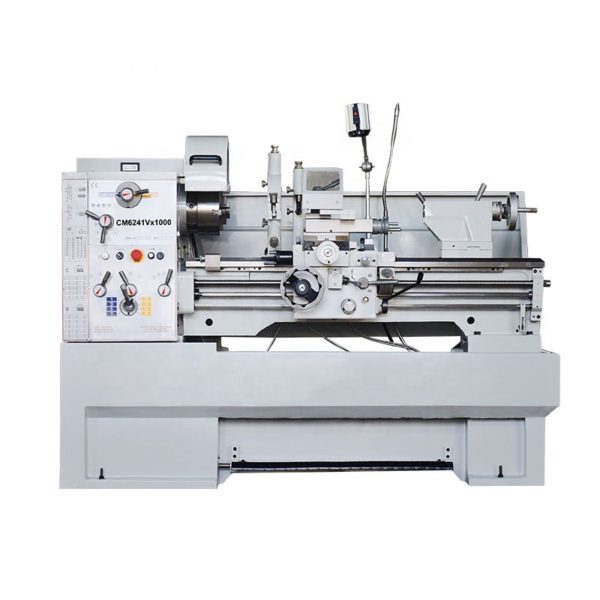

WMT CNC CM6241V Engine Lathe (2.2/3.3kw)

Swing over bed: 410mm

Swing over cross slide: 255mm

Swing in gap: 580mm

Length of gap: 19mm

Distance between centers: 1000mm /1500mm

Center height: 205mm

Width of bed: 250mm

Spindle nose: D1-6

Spindle bore: 52mm

Taper of spindle bore: MT6

Range of spindle speed: 16 changes 50-30000r/min

Max.travel of cross slide: 210mm

Leadscrew pitch: 4T.P.I.

Max.Section of tool: 20×20mm

Longitudinal feeds range: 0.05-1.7mm/rev(0.002″-0.067″/rev)

Cross feeds range: 0.025-0.85mm(0.001″-0.0335″/rev)

Inch threads range: 45 kinds 2-72T.P.I

Dia.of tailstock sleeve: 50mm

Travel of tailstock sleeve: 120mm

Taper of tailstock sleeve: MT4

Power of main motor: 2.2/3.3kw(optional 3.0/4.5kw)

Power of coolant pump: 90w

Overall dimension: 1940/2440×850×1300mm

Packing size: 2060/2560×900×1640mm

N.W/G.W: 1500/1750kgs, 550/1800kgs
