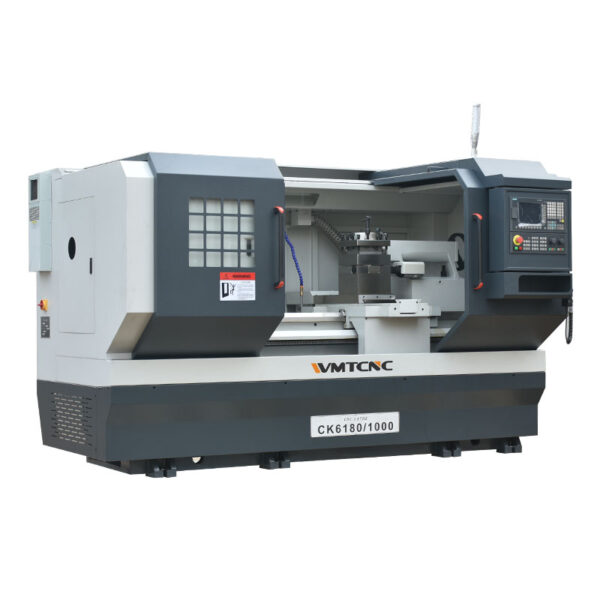

WMT CNC CK6180 Flat Bed CNC Lathe (800mm)

Max.swing over bed: Ф800mm

Max.swing over carriage: Ф560mm

Max. cutting length: 1500/2000/3000mm

Rail width: 460mm

Spindle nose: A2-8 or A2-11

Spindle bore: Ф86mm or Ф105mm

Taper of spindle bore: Ф90mm 1:20 or Ф110mm 1:20

Chuck size: 15″

Range of spindle speed: 100-1600 or 3 steps:30-150，,10-500,150-1200rpm

X-axis travel: 380mm

Z-axis travel: 1500/2000/3000mm

X/Z rapid speed: 5/8m/min

X/Z screw: 3206/5010

Electronic turret: 4 or 6 or 8

Max.section of tool: 25x25mm

Stroke of tailstock sleeve: 235mm

Diameter/Hole of tailstock sleeve: Ф90mm/MT5

Main motor power: 11kW

Coolant pump power: 250W

Overall dimensions (L x W x H): 3320/3830/4830x1600x1830mm

Packing size (L x W x H): 3520/4030/5030x1760x2030mm

Net weight: 4100/4600/5400kg

Gross weight: 4500/5000/6000kg
